Misting System India

Cloud Tech Pvt. Ltd. is at the frontier of developing qualified and high performing misting system for firm, household, corporate bodies, management and organizations etc. among others. Having misting system India from Cloud Tech Pvt. Ltd. has different reward of worse air conditioning system which is not just simple to work but also comes with supplementary support of after sales client support.

Cloud Tech Pvt. Ltd. is one of the leading companies of world that develop misting system India made on safe environmental based solutions. Cloud Tech Pvt. Ltd. offers reasonable shifting solutions falling within your budget.

Advantages of Misting System India

Misting System is cost effective instrument for cooling environment. In industrialized premises for beat high temperature Cloud Tech Pvt. Ltd. misting system is perfect choice. The best thing is that you can get personalized cooling systems as per your exact requirements.

Misting System at Cloud Tech Pvt. Ltd.

Spending time with family for outdoor activities or playing outdoor games with friends is the best options for an outdoor fun. But, it becomes impossible to be involved in such activities when the sun becomes intolerable. This is the time when misting system turns to be the only source of relief. Keeping that in mind, we at Cloud Tech Pvt. Ltd., manufacture and supply standard and quality misting system at an affordable price to cool the environment. Our system is an ideal solution for the industry, as you can get the personalized cooling system to meet your needs of hour. It can cool off different areas, patios, porches and deck as well as surrounding pools.

Cloud Tech Pvt. Ltd. provides you with a complete assortment of Misting system, manufactured by using highly advanced modern unit, under the management of our experienced professionals. The systems are designed based on non-toxic and bio-degradable solution. Some of the key features of our products are:

Features:

  • Simple to function
  • Easy to operate & clean
  • Reduce the ambient temperature
  • Improved air conditioning solutions
  • Application exact designed
  • Prohibitive solutions
  • Apt for outdoor & indoor cooling
  • misting system solution

Cloud Tech Pvt. Ltd. manufactures a different range of misting systems in India. Let’s have a quick look at them:

EVAPORATIVE COOLING SYSTEM

Be comfortable

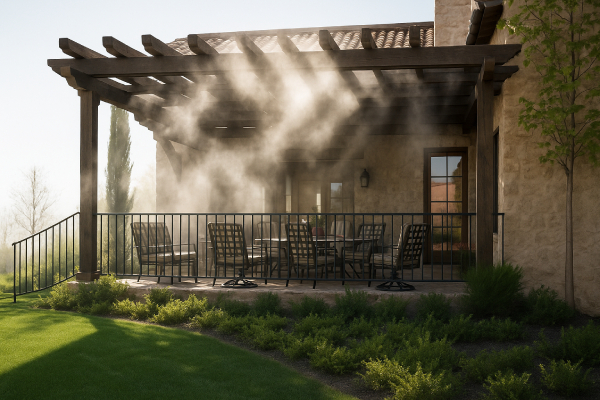

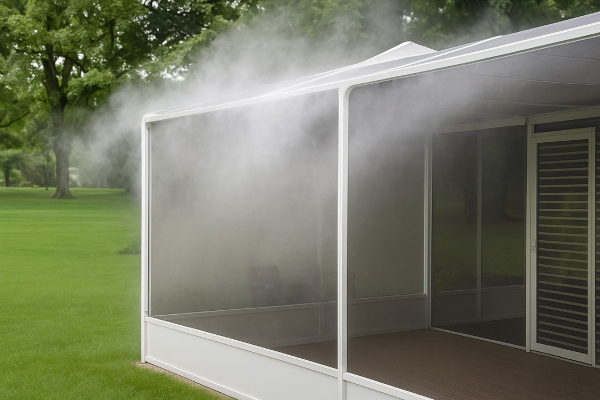

We design cooling outdoor/ indoor cooling systems by employing evaporative cooling principles and using high-tech technologies, which help drop temperature by at least 30 degrees. Our system increase the usable living space in your home, halls, working areas by adding misting to indoor areas, covered courtyards, patios, pool decking, play areas and more.

Be Inviting

Take advantage of the same technology that world-class resorts, industries use to enhance living and working comfort by adding a Cloud Tech Pvt. Ltd. Evaporative Cooling System to your place. Friends, family & guests will enjoy the amenity - neighbours will be envious.

Drop temperatures by up to 30 degrees and creates a pleasant and comfortable environment year- round for you with Cloud Tech Pvt. Ltd..

Be Confident

For nearly eight years Cloud Tech Pvt. Ltd. has pioneered evaporative cooling and pure-water fog effects. Our evaporative cooling systems are installed in many residences, industries, resorts. Transform your area into a pleasant cooled atmosphere and experience Cloud Tech Pvt. Ltd..

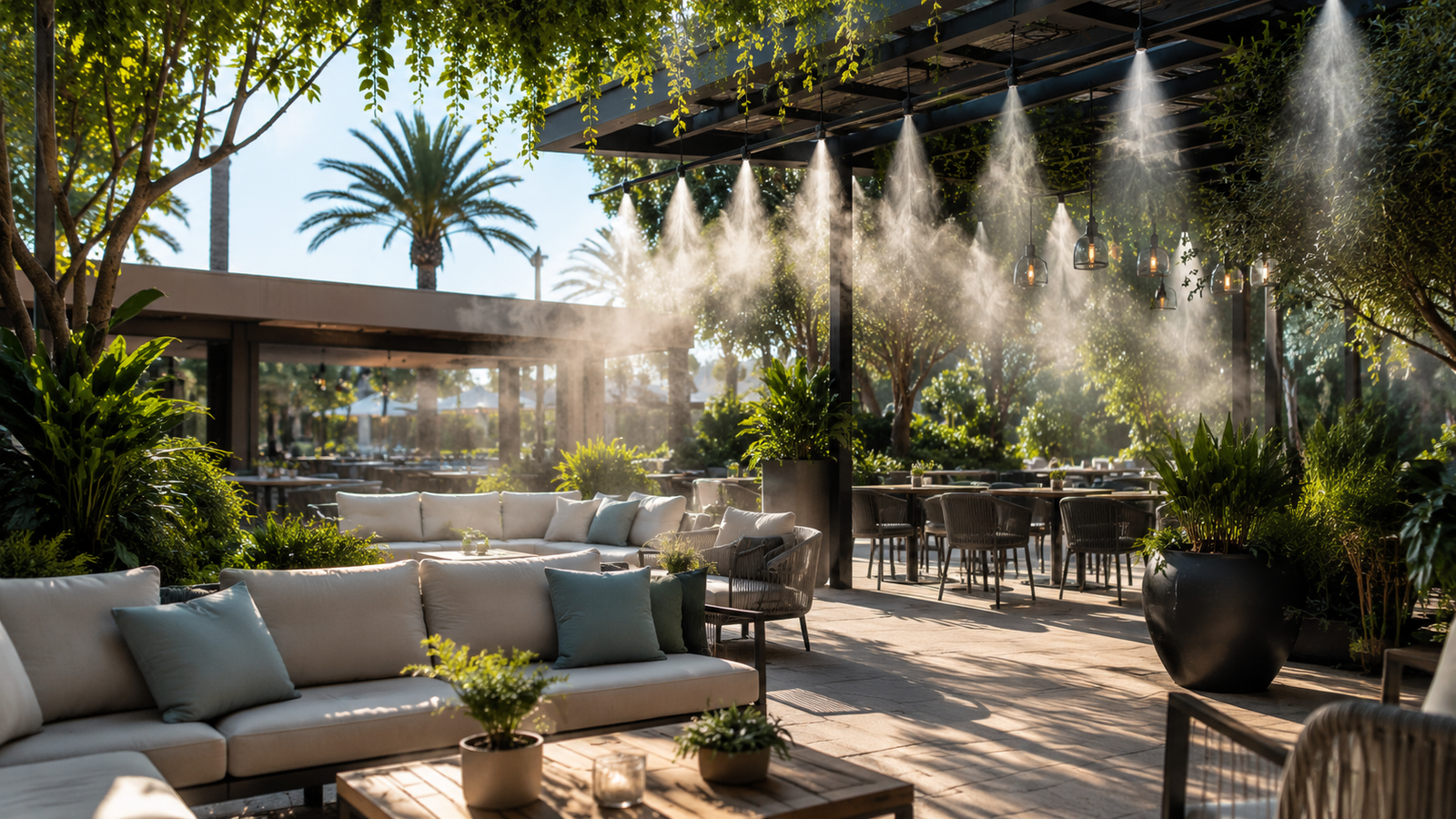

Complete your outdoor/ indoor living experience with Cloud Tech Pvt. Ltd. high pressure misting system.

Technology

Misting systems provide cooling through evaporation. Evaporative cooling is a very simple process. Water requires energy to evaporate (600 calories of heat per gram of water, to be exact). As the mist evaporates the energy exchange results in temperature reductions.

BASIC FUNDAMENTALS

A) VAPORIZATION

Vaporization is a term which occurs when liquid converts into vapor. For the conversion, the heat must be absorbed by the liquid. To take an example, For instance, in order for 1 mol (18 g) of water to be completely vaporized at 20 C, 44.10 KJ (41.80 BTU) of heat energy must be absorbed. The amount of heat required for converting one mole of liquid into one mole of vapor at a given temperature and constant pressure is called the latent heat of vaporization.

H2O (1) +44.1 KJ H20(g)

It always requires heat to vaporize a liquid because of the greater magnitude of the force of attraction between the molecules in the liquid state as compared to the gaseous state. Energy must be supplied to overcome the force of attraction between molecules in the liquid, to pull them apart and increase the distance between the molecules. The energy supplied increases the potential energy of the molecules.

B) FLASH EVAPORATION

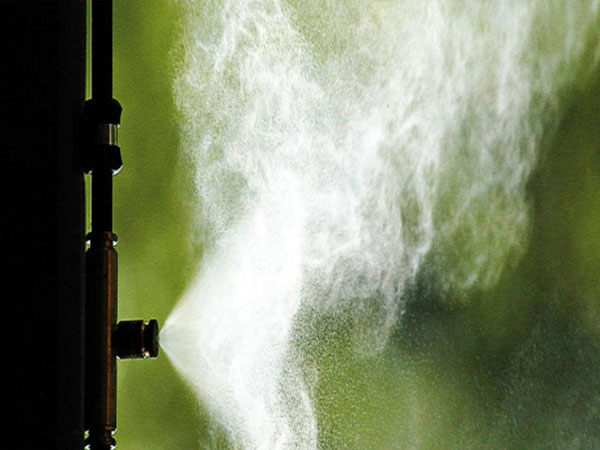

It’s the flash evaporation of liquid H20 due to which the Cloud Tech Pvt. Ltd. system creates the cooling effect. This change happens when a liquid under pressure goes through a nozzle to a pressure low enough that some of the liquid vaporizes or “flashes”, that further produce a two phase stream of vapor and liquid in equilibrium.

First the water is first filtered then pumped to as much as 1000 psi. After that it is sent to unique atomizing nozzles. When the water passes through these nozzles, flash evaporation occurs. The energy required for this vaporization to occur is provided from the surrounding air in the form of heat, thus cooling the surrounding air.

C) Impact

We have a set of formula for giving the impact of Cloud Tech Pvt. Ltd. high pressure spray. Impact = Mass per Unit Time x Spray Velocity. The variables that are supposed to affect the impact of a spray are:

  • spray angle
  • flow rate
  • concentration of the spray
  • operating pressure
  • air friction

These variables either affect the mass per unit time or the velocity and this affects impact. The flow rate is basically the mass per unit time. The size of drop is considered to affect the velocity. Because of air friction, the smaller drops lose velocity more quickly than the larger ones. Our experts always distinguish the whole impact of the nozzles from the impact per unit area. The total impact of two nozzles may be the same, but the impact per unit area can be entirely different. The concentration of the spray and the spray angle don’t affect the total impact directly, however does affect the impact per unit area. Keep in mind that the smaller the spray angle and the more concentrated the spray pattern, the higher the impact per unit area is.

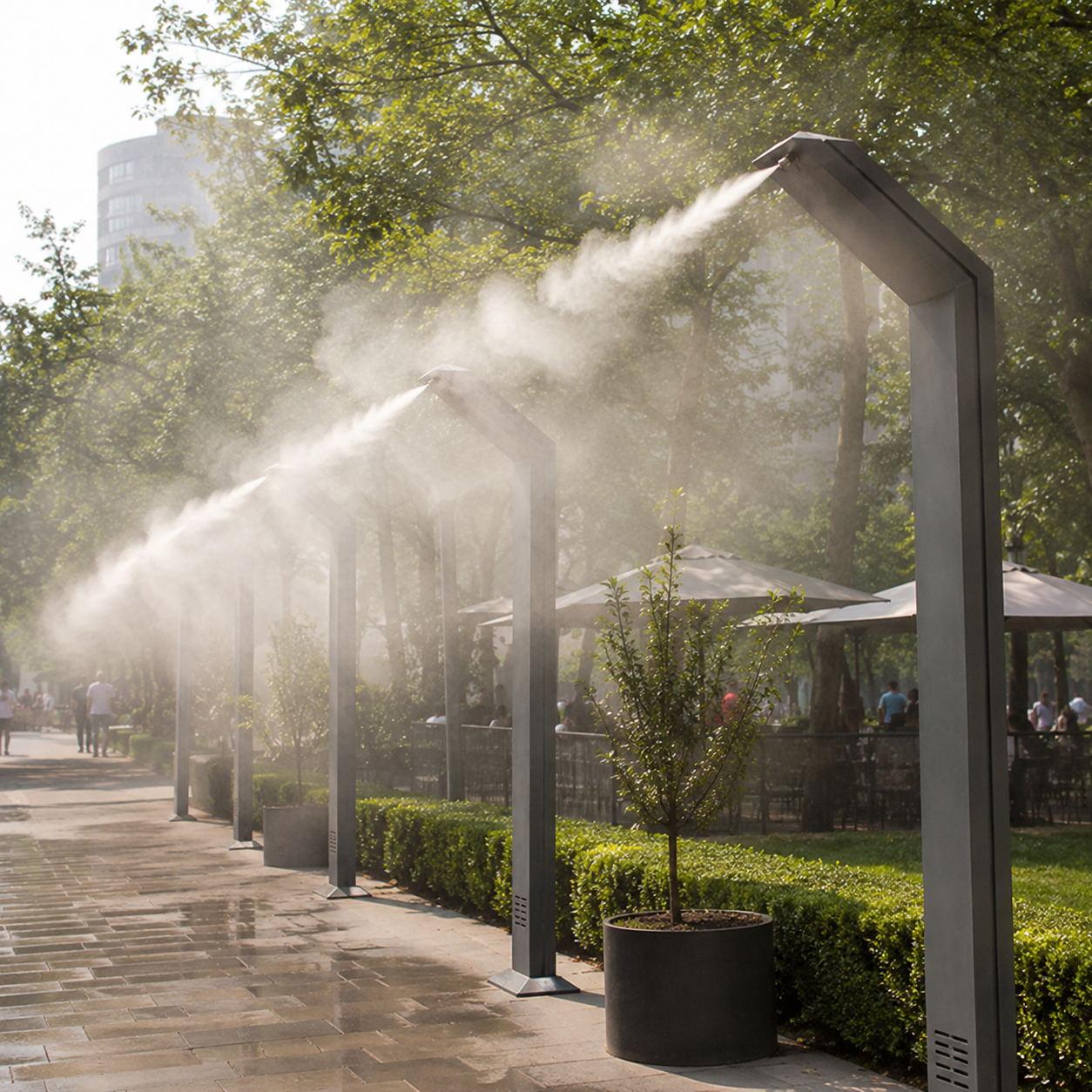

  • misting system image
  • performance of misting system

Performance

Our system’s efficiency varies according to the existing temperature. It completely depends upon the temperature level and existing humidity. The quality of the cooling procedure gets improved on accordance with lower humidity or higher temperatures. It works perfectly with temperature between 26 to 45 degree C and relative humidity between 40 to 80%. If the humidity goes up to 80% or more than this, temperature reductions will be as high as 10 degrees. If the humidity levels are reported to be between 40% and 80%, temperature reductions will be as high as 20- 30 degrees.

The system designed by us is also the best option for damp spaces. This is because when the temperature reaches its day time peak, relative humidity will normally reduce to its lowest point.

How it works

Our systems come equipped with a pump, which is used for pressurizing the water from your hose. For decent outdoor cooling systems, 1000 psi is quite standard. On using the higher pressure, it is a must to pinch down the nozzle to a much smaller size and thus process a much finer mist.

Where to use it

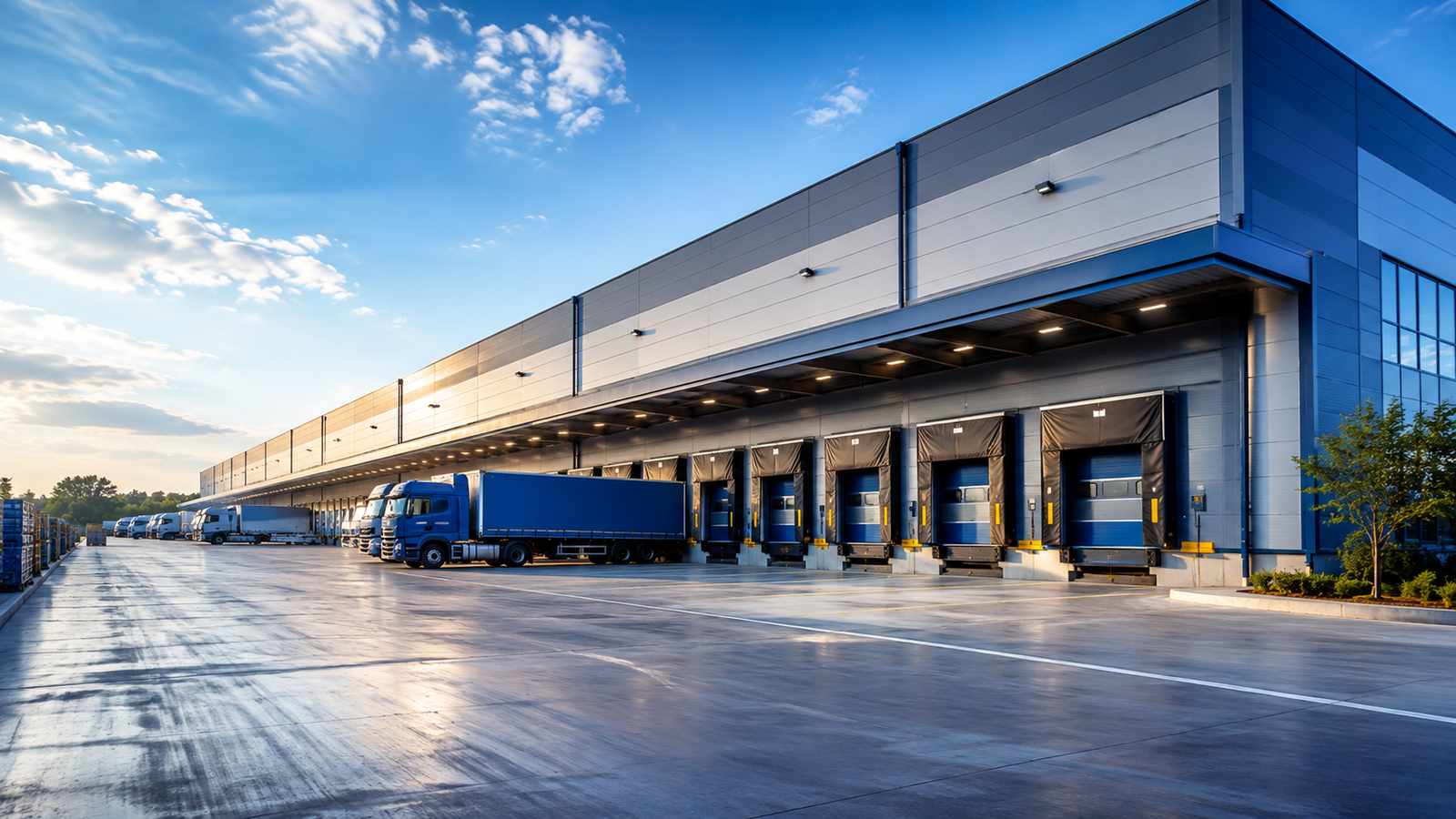

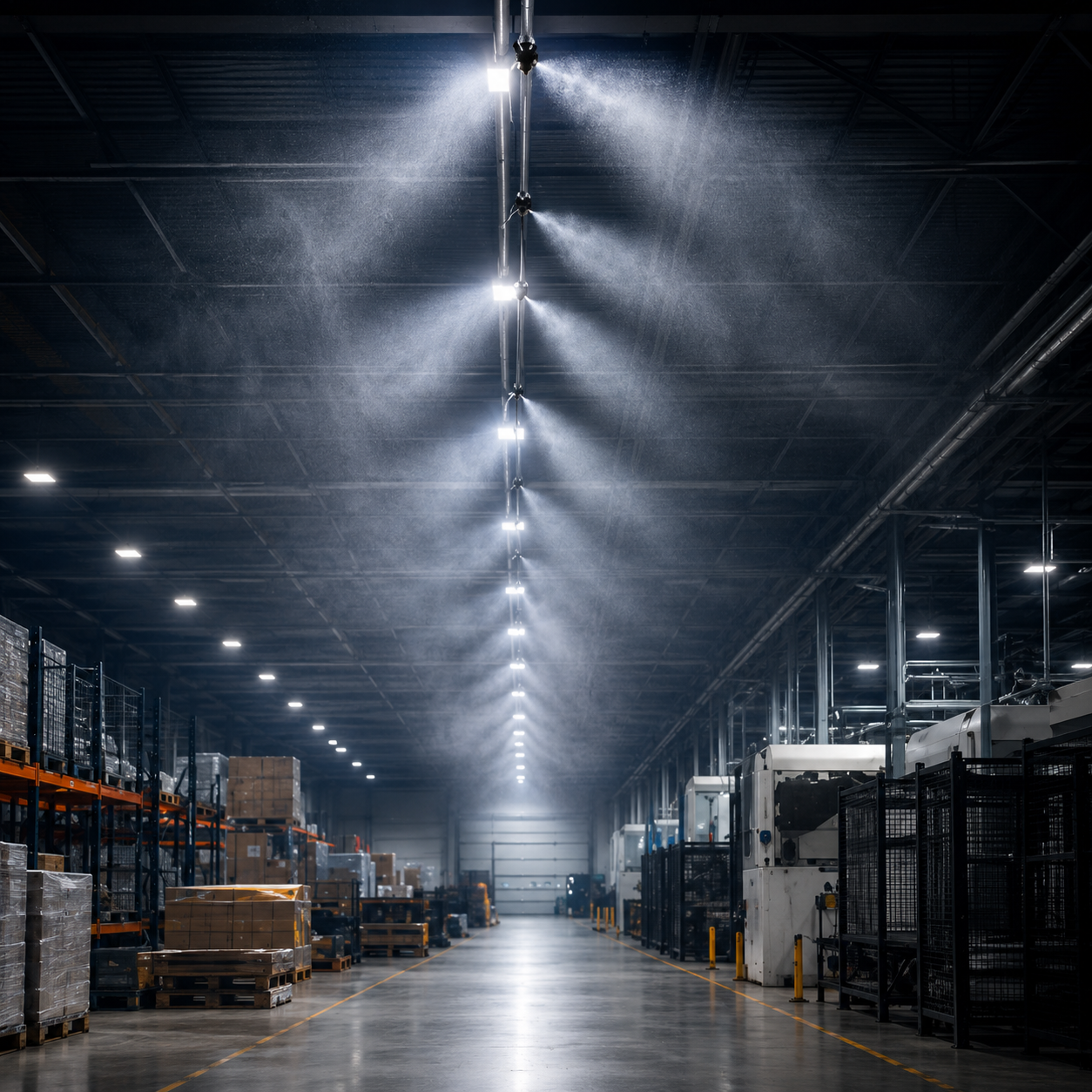

Our systems can be used in a wide variety of situation. , It’s a perfect choice for the place where the use of conventional air conditioners would be too expensive: verandas, warehouse, theme parks, wine cellars, hotels, discotheques, showrooms, sports facilities, restaurants, beach centers, pedestrian’s precincts, events, workshop, factories with hot environments, gymnasiums...

The systems can be installed either outdoors or in some cases indoors. Our technical office can work together with you to create any kind of project.

Advantages

  • Significantly lowers ambient temperature.
  • Eliminates dust, pollens and flying insect.
  • Versatile, flexible.
  • Easy to install.
  • Low energy cost.
  • High efficiency.

Economic advantages

  • Less expensive to install: When compared to air conditioners estimated cost for installation of a misting system is about one forth that of central refrigerated air conditioning.
  • Less expensive to operate: Estimated cost of operation of a misting system is 50 times less than that of refrigerated air. Again, the power consumption in a Evaporative cooling misting system is limited to misting machine. As the water vapor is not recycled, there is no compressor, which otherwise consumes most of the power in closed-cycle refrigeration. Moreover, the refrigerant is water. No special refrigerants, such as ammonia, sulfur dioxide or CFCs, are used that could be toxic, expensive to replace, contribute to ozone depletion and/or be subject to stringent licensing and environmental regulations.

Evaporative Cooling System Vs Air Conditioner

Cost Comparison

Energy required to run Evaporative cooling system is “50 times” less than energy required to run Air Conditioner. No special refrigerants, such as ammonia, sulfur dioxide or CFCs, are used that could be toxic, expensive to replace. With Cloud Tech Pvt. Ltd. make a pleasant and healthy environment around your working place.

Cloud Tech Pvt. Ltd. evaporative cooling system can also be beneficial in mosquito and odor control by using essential oils which are non- toxic and biodegradable.

Cloud Tech Pvt. Ltd. Out door cooling 3/8” misting system content list:

  • 3/8" UV-Treated Flexible PVC Mist Line
  • Micronizers
  • Rotatable brass Connectors
  • Expandable female brass fitting
  • Expandable male brass fitting
  • Brass threaded end cap
  • Filters
  • Hose washer
  • Brass “T”
  • Interconnected 2 way misting line valve
  • Dozing pump
  • Misting machine CTMC60

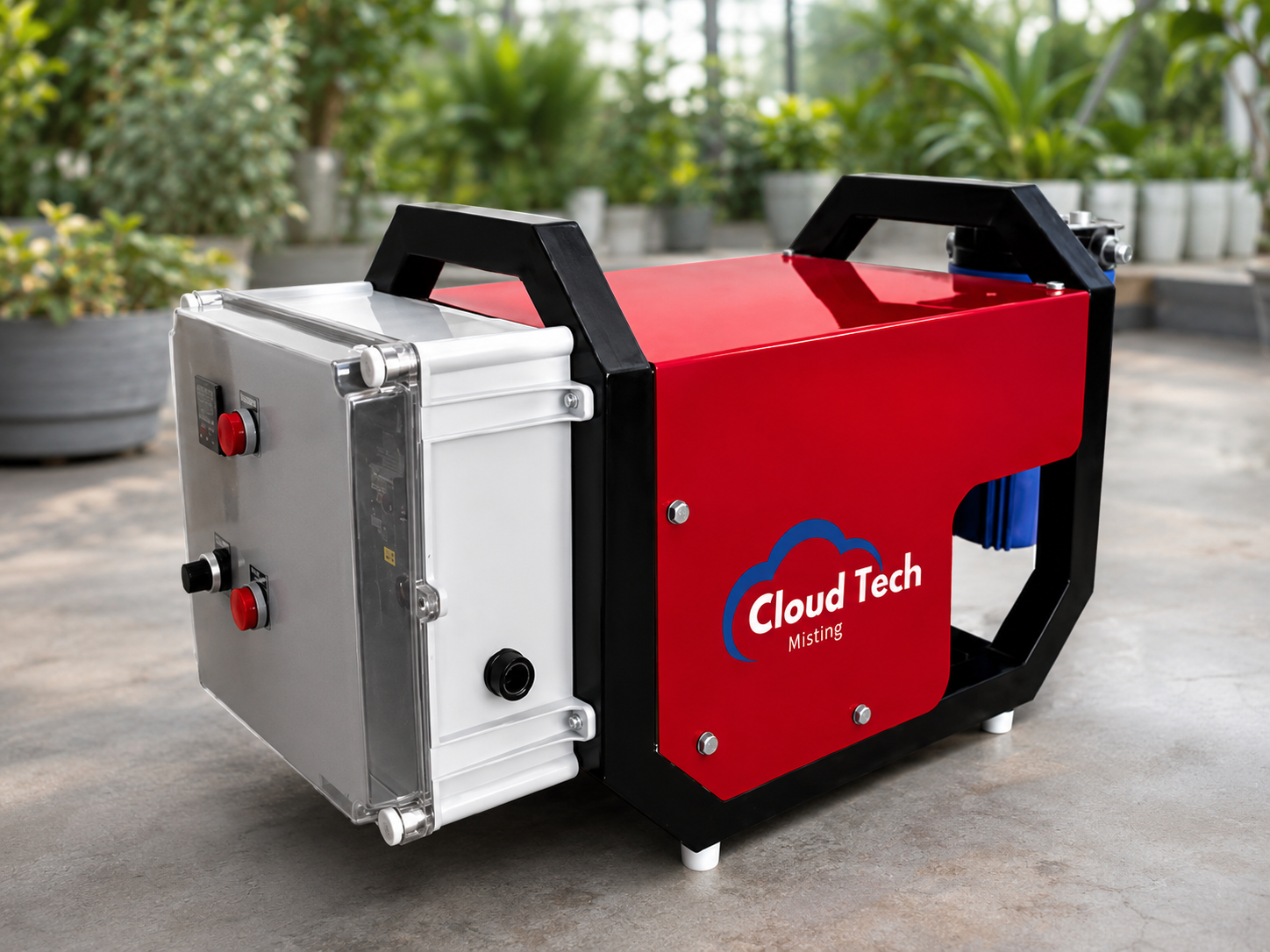

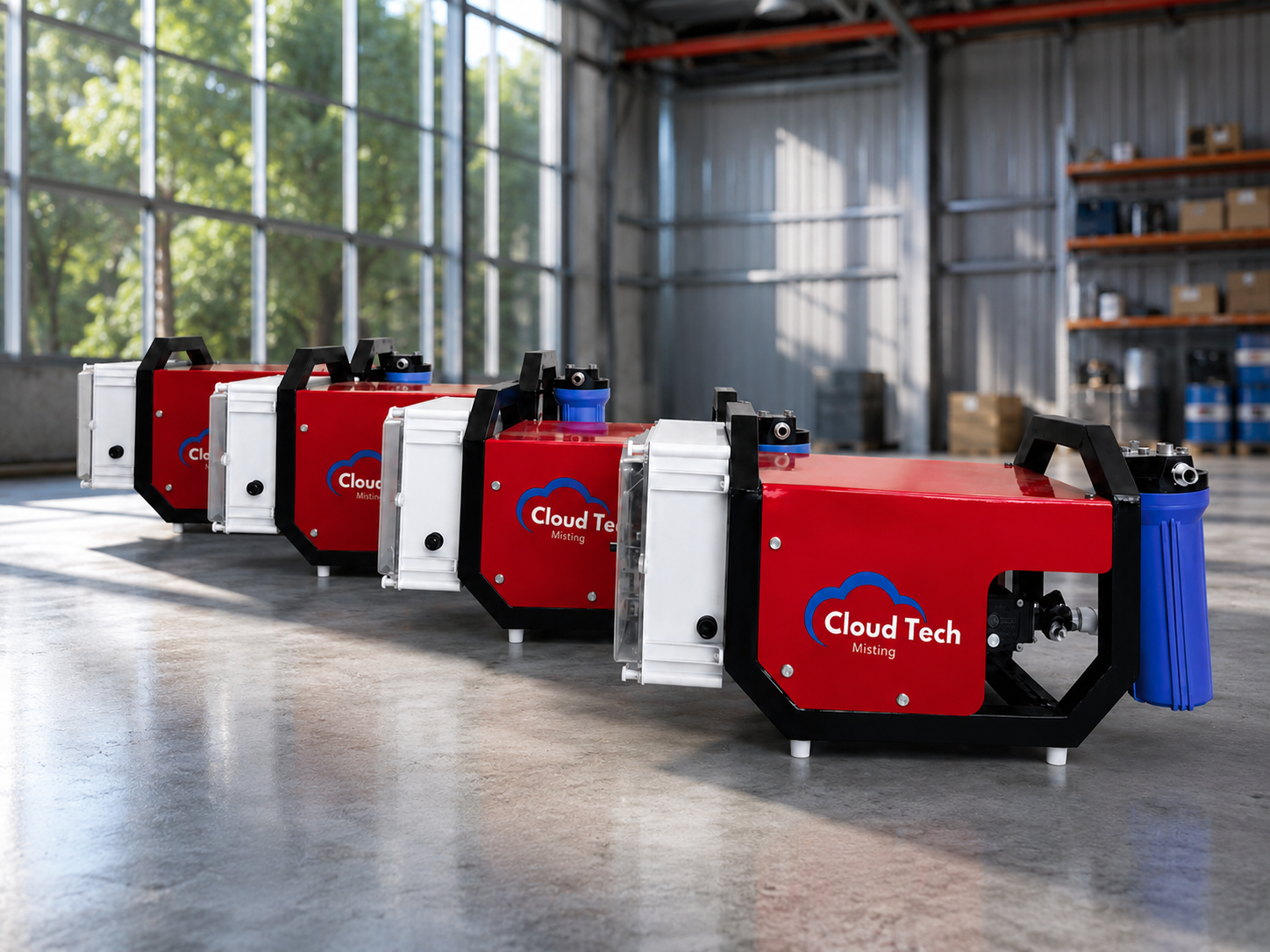

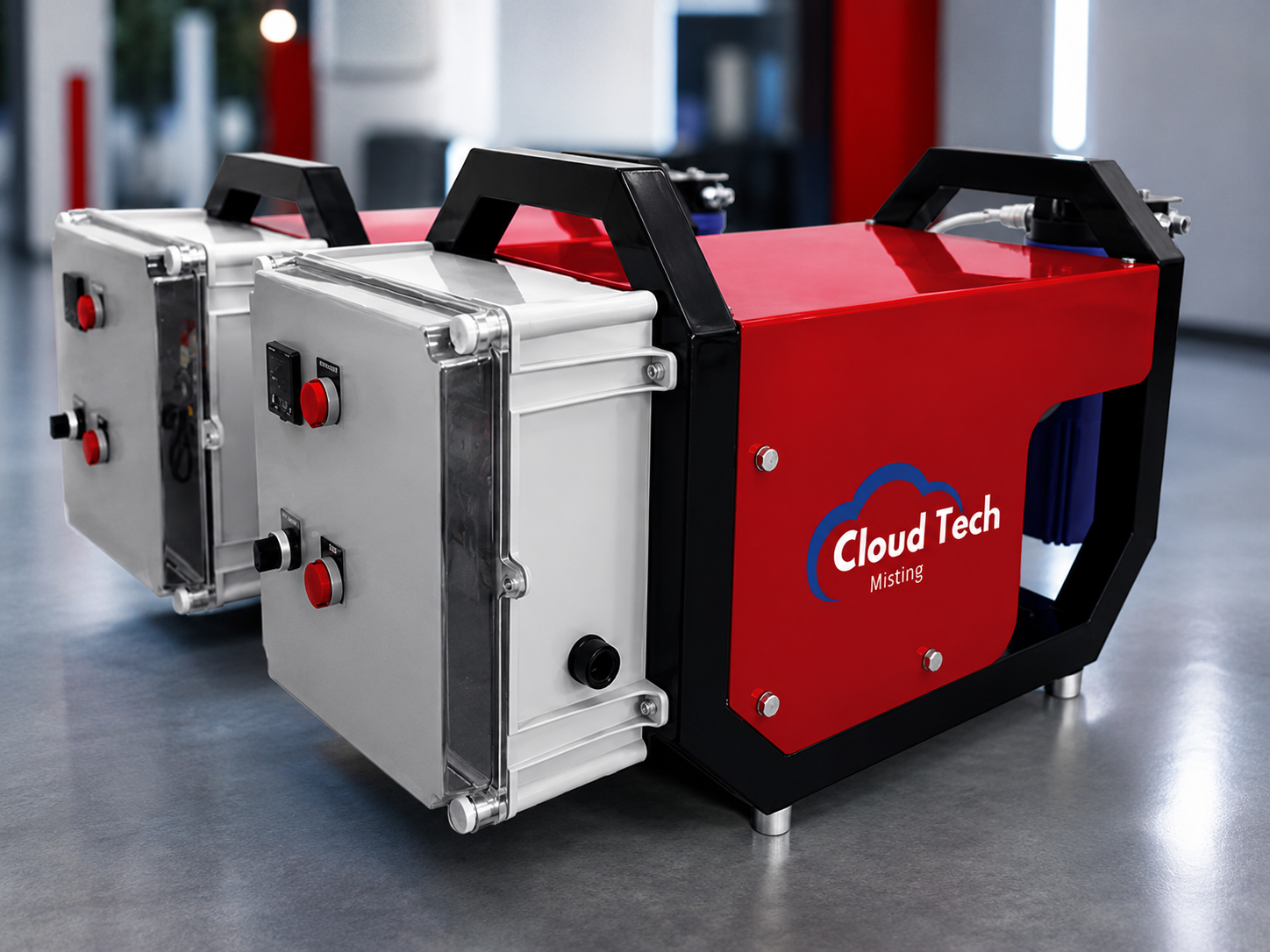

Features of Cloud Tech Pvt. Ltd. CTMC60 misting machine:

  • 1000 psi operating pressure for optimal misting effect using the narrowest orifice nozzles.
  • Nickel-plated forged brass manifold resists rust and corrosion.
  • Patented internal rinse cooling design to increase pump life.
  • Dual bearing design to lower the heat and noise level down to 75 dB.
  • Automatic pressure valve controls the consistency of the pump pressure.
  • Circuit breaker for electrical safety if the voltage is outside of the safety parameter.
  • 24-hour timer with 8 settings for minutes and seconds to set the misting intervals as well as pressure release.
  • Inlet filter system increases the pump's life and reduces clogged nozzles.
  • Inlet solenoid valve.
  • Outlet solenoid valve.
  • Air release valve.
  • MPressure release valve.
  • Available in 60HZ/220V and 50HZ/230V
Why to choose Cloud Tech Pvt. Ltd. ?

At Cloud Tech Pvt. Ltd., misting systems are designed using quality and standard raw materials carefully. We have gained more than 8 years of extensive industry experience so can design personalized system in order to satisfy any special needs in the misting sector.

Is there any maintenance required ?

No special maintenance is required. However, you need to clean nozzles periodically and add or change the oil for smooth functioning of the pump.

How should the system be installed ?

You can mount the system around the perimeter of the area so that it can cool outdoor and indoor area.

How should the system be designed ?

For a proper design and installation of misting system is required various different variables. The design of the system depends on the required benefits, exact applications, and the conditions present at the system. Our technical support staffs at Cloud Tech Pvt. Ltd. are highly experienced and come with well-trained in all aspects and uses of misting systems. They can help you design a system that is ideal for your needs and requirements of any misting application.

If you are on a lookout for an evaporative system for outdoor or indoor cooling, feel free to call us. We will design and manufacture the evaporative cooling equipment is which is available at cost-effective rates and can cost little more than low pressure misters.

“Original Equipment Is Always the Best”

“So why does it matter what brand of misting equipment you buy?” If you prefer the original, not an imitator, you’ll choose Cloud Tech Pvt. Ltd..
