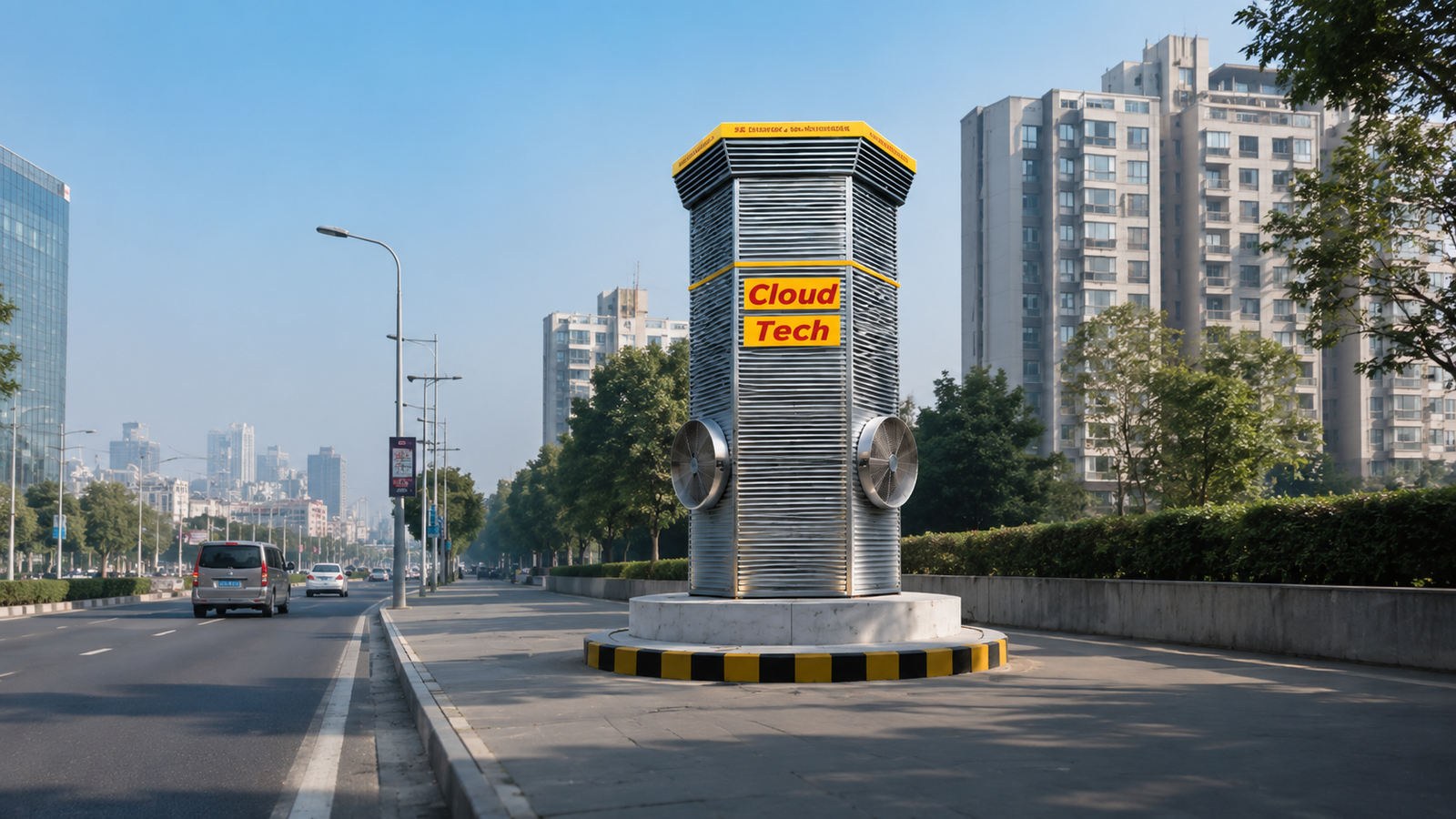

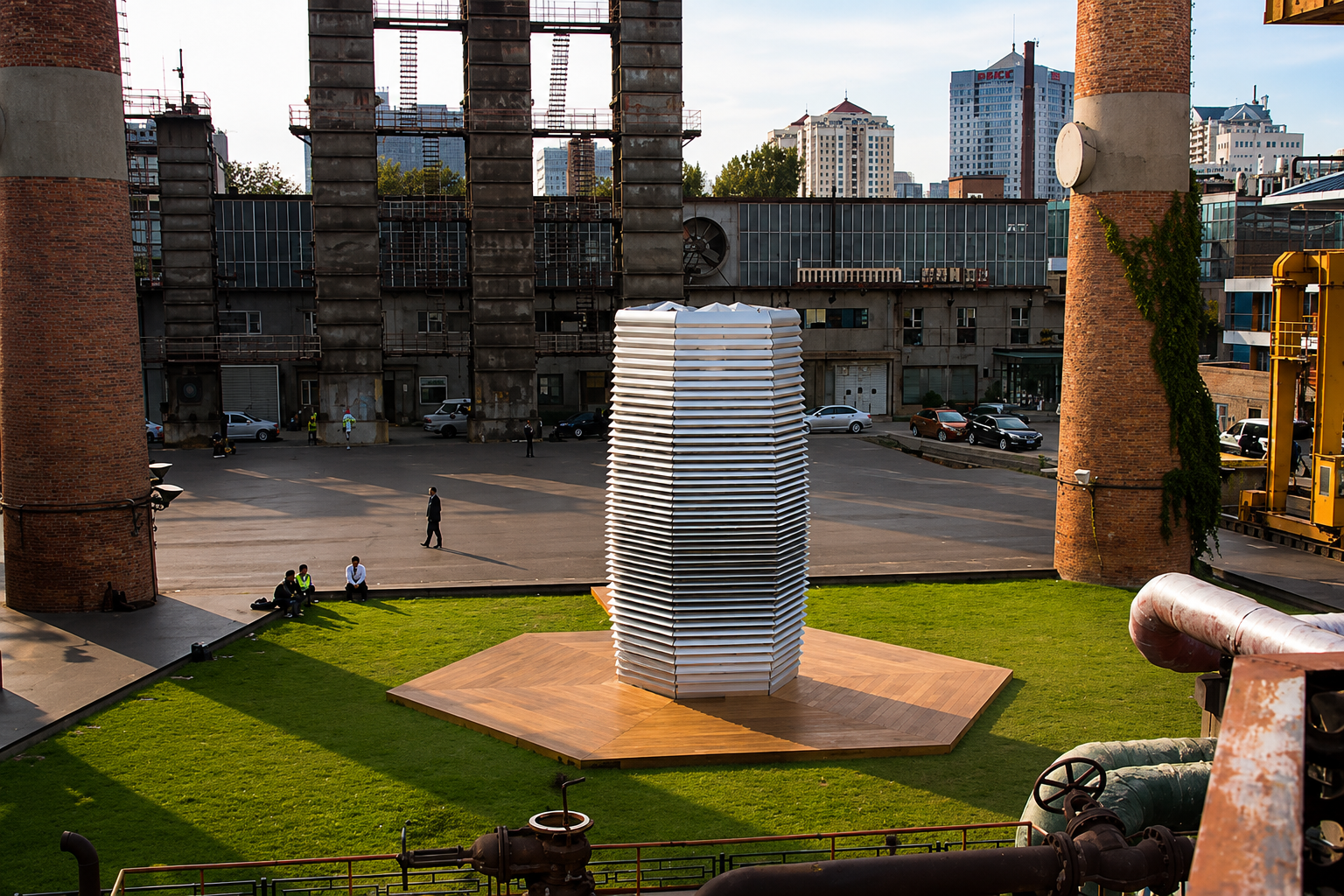

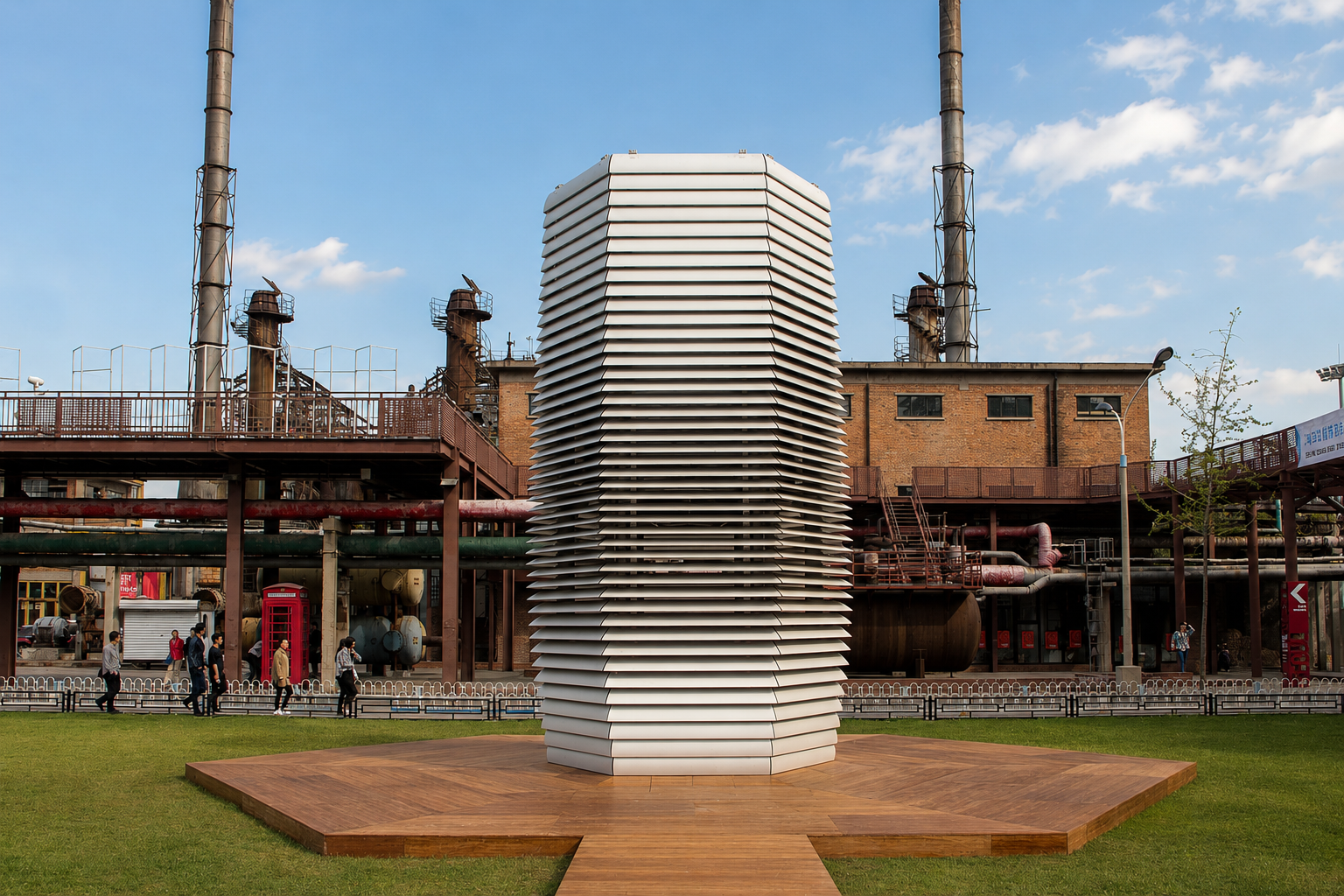

Smog Tower
Our innovative Smog Tower is Cloud Tech's groundbreaking solution to combat urban air pollution. This revolutionary outdoor air purification system efficiently removes particulate matter and toxic gases from the atmosphere, helping cities breathe cleaner air again.
Each Smog Tower employs our proprietary Five-Stage Purification Process, capable of cleaning up to 100,000 m³ of ambient air per hour while consuming minimal energy (approximately 10 kW). This makes it the world's first and only air purifier that effectively eliminates both particulate matter and harmful gases.

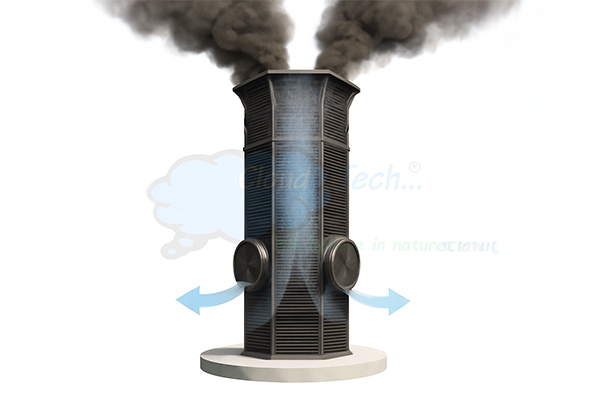

Working like a giant vacuum cleaner, our Smog Tower reduces approximately 95% of airborne particulate matter by transforming fine and ultrafine dust particles into coarse dust. The tower draws polluted air from the top and releases clean, filtered air through its vents, creating safer urban environments and healthier communities.
Technical Specifications
| Model | Capacity | Purification Stages | Power | Dimension | Display |
|---|---|---|---|---|---|
| Vayu Shodhak-1 | 20,000 m³/hr | 3 | 4 kW | 6 ft x 2.5 ft | AQI Display |
| Vayu Shodhak-2 | 45,000 m³/hr | 4 | 7 kW | 10 ft x 4 ft | AQI Display |
| Vayu Shodhak-3 | 100,000 m³/hr | 5 | 10 kW | 20 ft x 8 ft | AQI Display |
Customization Options
Cloud Tech offers customized exterior designs and appearances for all Smog Tower models to match your environment and branding requirements.
Application Areas
Key Benefits
How It Works
Our Smog Towers are ideal for these critical applications:
Urban Centers
Combats high pollution levels in dense metropolitan areas where smog reduces visibility and impacts public health.

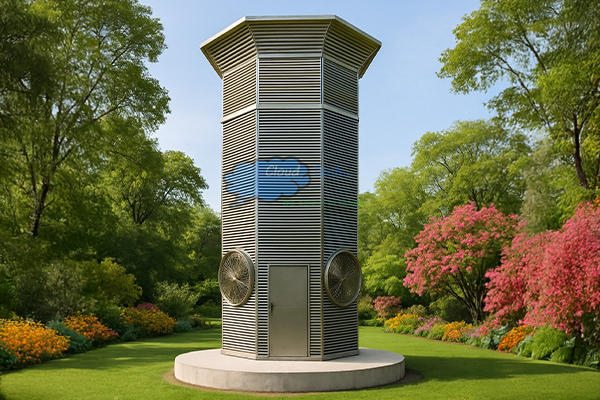

Public Spaces
Creates cleaner air zones in parks, squares and open areas where people gather and exercise outdoors.
Healthcare Facilities
Provides improved air quality around hospitals and clinics where vulnerable patients need protection from respiratory irritants.
Educational Institutions
Ensures cleaner air for schools and campuses, protecting developing respiratory systems of children and young adults.

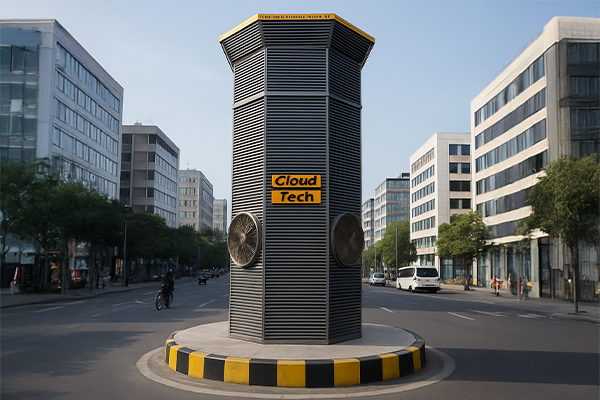

Traffic Junctions
Reduces concentrated vehicle emissions at busy intersections where pollution levels typically peak during rush hours.
Industrial Areas
Creates protective air quality barriers between manufacturing zones and residential neighborhoods to minimize exposure to industrial emissions.
Health Protection
Reduces risk of respiratory and cardiovascular ailments by removing harmful particulates and gases that cause breathing difficulties.
Improved Visibility
Clears haze and smog, enhancing visibility in urban environments and reducing the visual impact of air pollution.
Environmental Protection
Safeguards plant and animal life by removing ground-level ozone and other pollutants that damage crops, forests, and wildlife habitats.
Energy Efficient Operation
Processes massive volumes of air with minimal energy consumption, making it a sustainable solution for long-term air quality management.
First Stage: Pre-Filtration
Polluted air passes through a specialized pre-filter designed to capture particulate matter larger than PM10. These filters are cleanable and reusable, effectively trapping major pollutants and recommended for dusty environments.
Second Stage: Ionization
Air moves through an ionizing chamber where ion technology creates a sphere of ions. Particles become positively charged when passing through the anode, and with the ground negatively charged, they're pulled downward. This stage removes 75% of particles sized PM10-PM2.5.
Third Stage: Electrostatic Precipitation
The remaining air passes through a high-voltage electrostatic spray zone where highly charged atomized water droplets attract oppositely charged pollutants and settle them onto collector plates, effectively removing particulate matter smaller than PM2.5.
Fourth Stage: Odor Neutralization
Air enters an odor neutralization chamber where harmful gases and odors undergo chemical reactions with neutralizers. Through absorption and adsorption processes, toxic gases like Sulphur, Ammonia, Mercaptans, and other organic odor gases convert to neutral compounds.
Fifth Stage: Final Filtration
Air passes through a complex layered stainless steel sintered filter that captures any remaining pollutants. This long-life, cleanable filter offers high capturing capacity for final air purification before release.
Five-Stage Purification
Complete air cleaning system that eliminates particles from PM10 to ultra-fine PM2.5 and neutralizes toxic gases like Sulphur and Ammonia.
High Efficiency
Removes approximately 95% of airborne particulate matter while cleaning up to 100,000 m³ of ambient air per hour.
Energy Efficient
Operates with minimal power consumption of approximately 10 kW while delivering maximum air purification performance.
