Cloud Tech Private Limited’s Anti Smog Gun is a pioneering solution designed to combat rising air pollution and smog levels in India. First introduced by Cloud Tech Private Limited, this innovative system releases ultra-fine water droplets (less than 10 microns) that absorb harmful airborne particles and bring them down to the ground without leaving surfaces wet.
With the increasing concern of dust, smog, and air pollution, the demand for effective dust suppression and air cleaning equipment is at an all-time high. The Anti Smog Gun has emerged as one of the most effective solutions. This high-pressure mist cannon sprays atomized water through advanced nozzles, capturing dust and pollutants in the air. A powerful fan disperses these droplets across large areas, reducing air pollution by up to 95%.
As the first and only manufacturer whose Anti Smog Gun was tested and approved by CPCB in 2017, Cloud Tech Private Limited continues to lead the industry with reliable and effective dust suppression systems. Our technology successfully reduces PM10 and PM2.5 particles along with harmful gases, making the environment cleaner and safer.
Anti Smog Guns deliver fast, measurable improvements in local air quality. Key benefits include:
Anti Smog Gun price varies depending on throw capacity, automation level, nozzle design, mobility configuration and site requirements. Cloud Tech Pvt. Ltd. offers CPCB-approved Anti Smog Guns engineered for maximum dust suppression efficiency, long-range mist coverage and low water consumption — suitable for construction, industrial and urban pollution control applications.

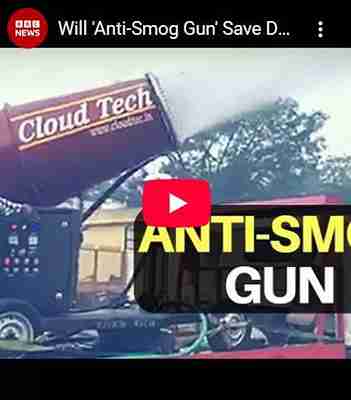

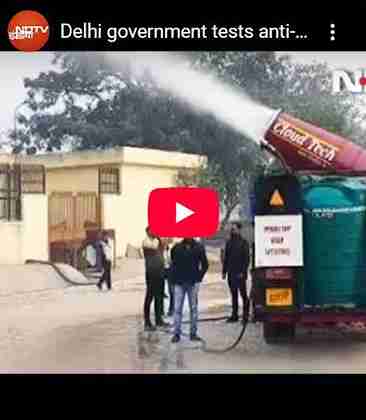

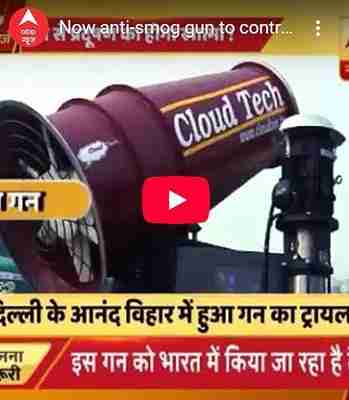

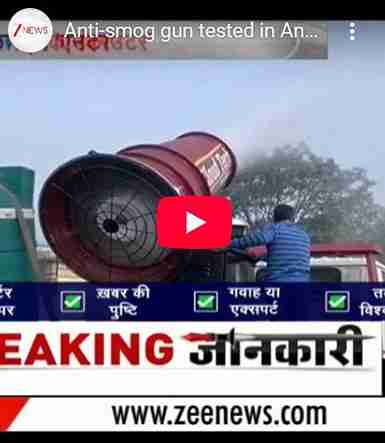

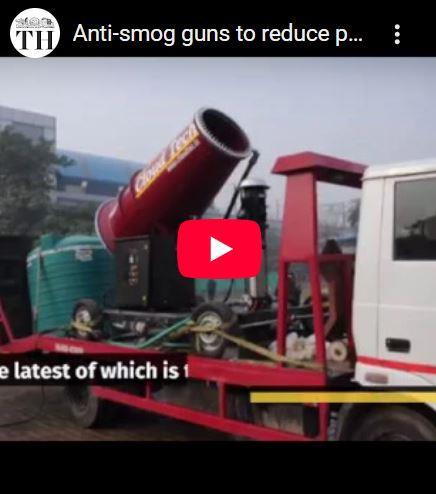

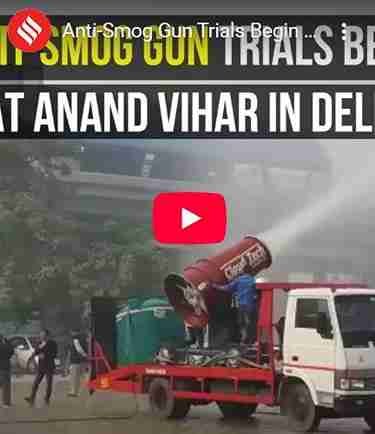

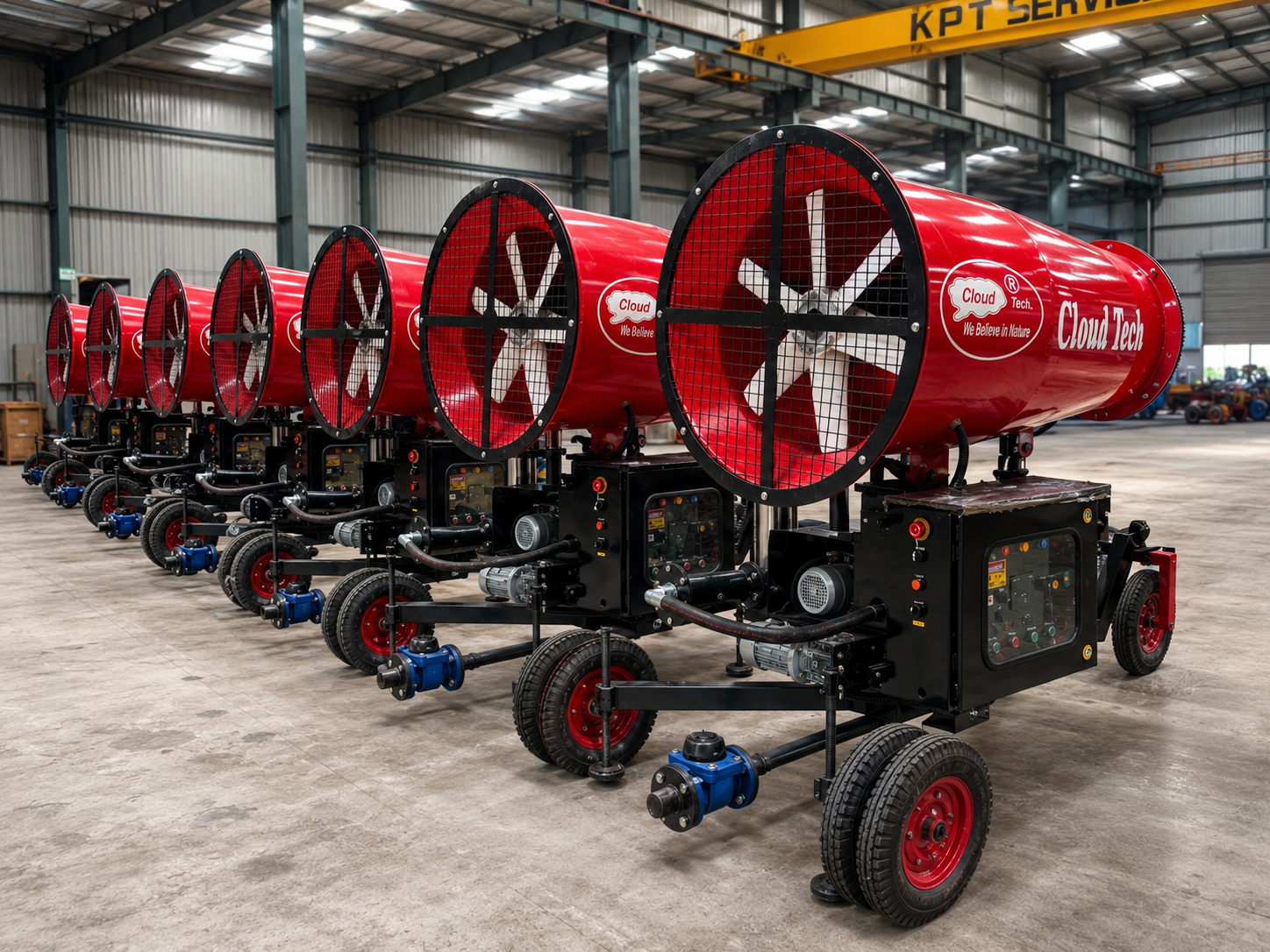

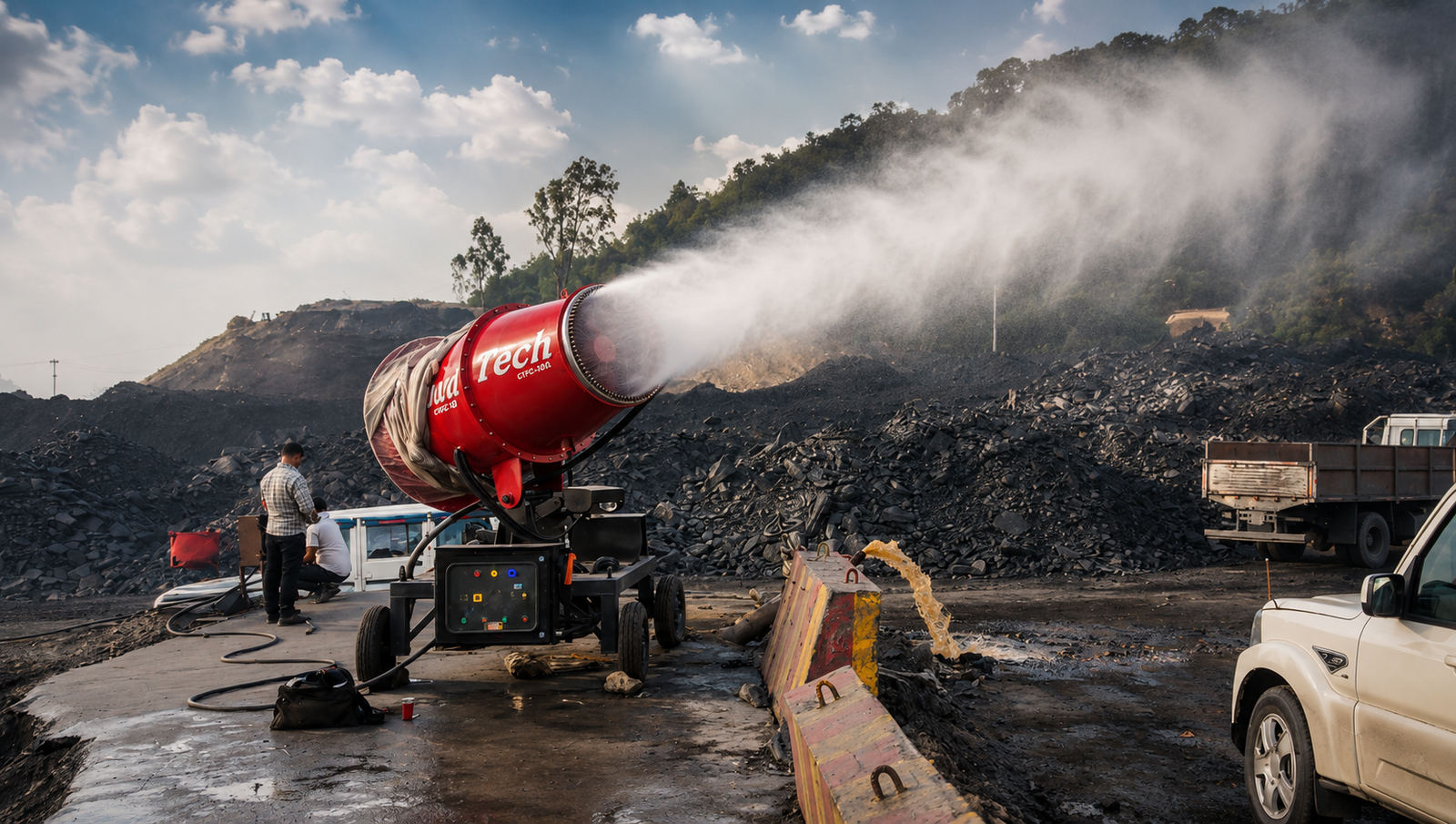

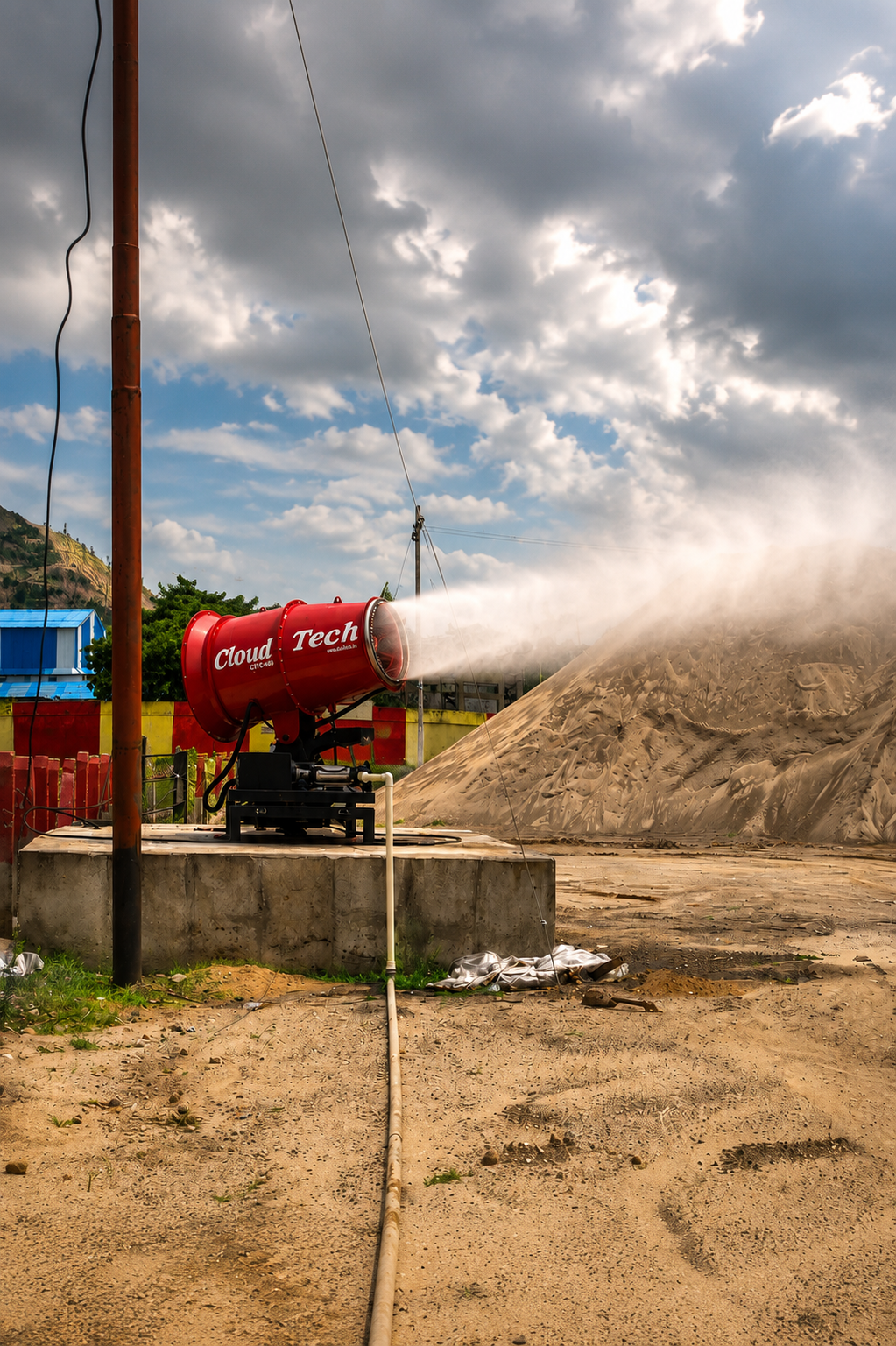

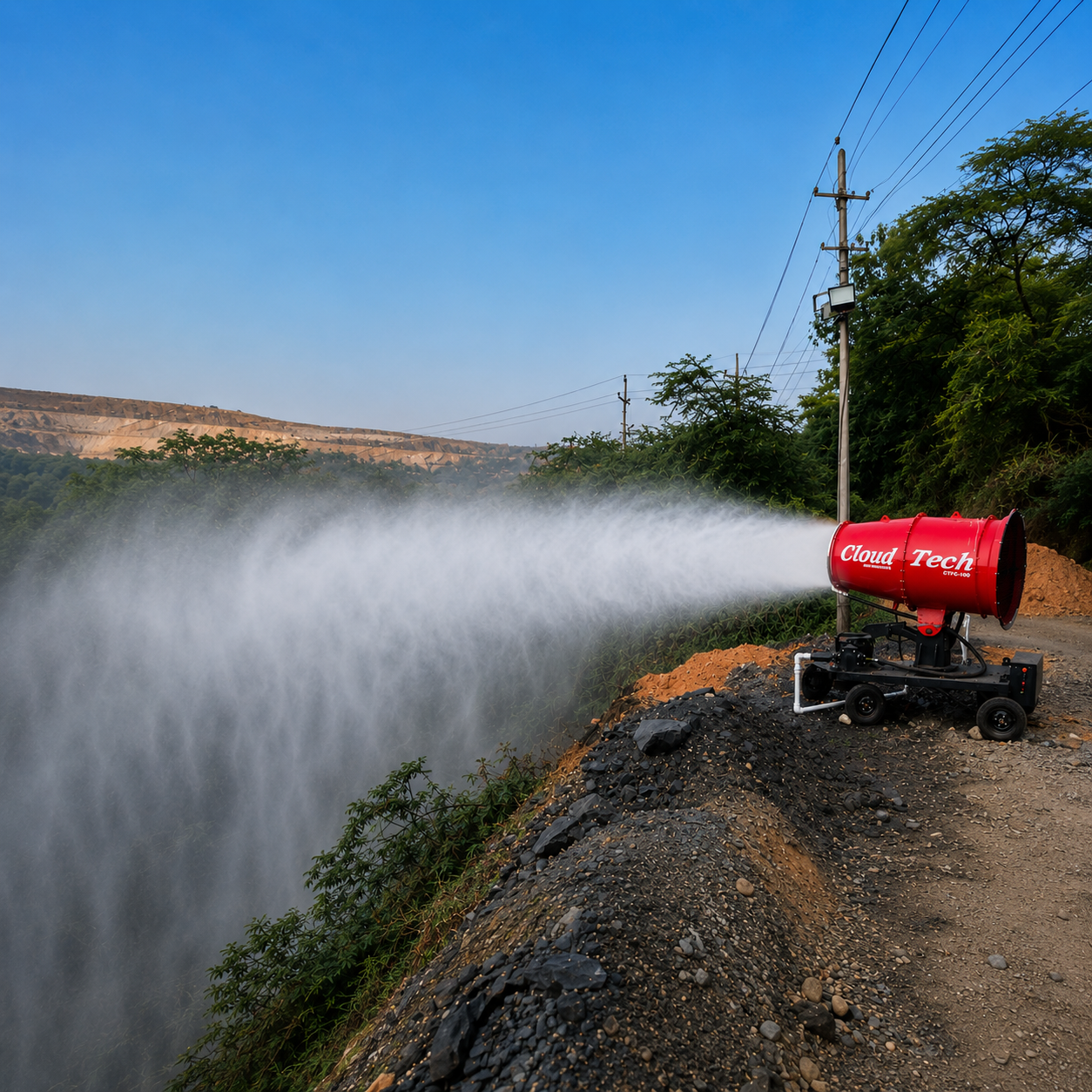

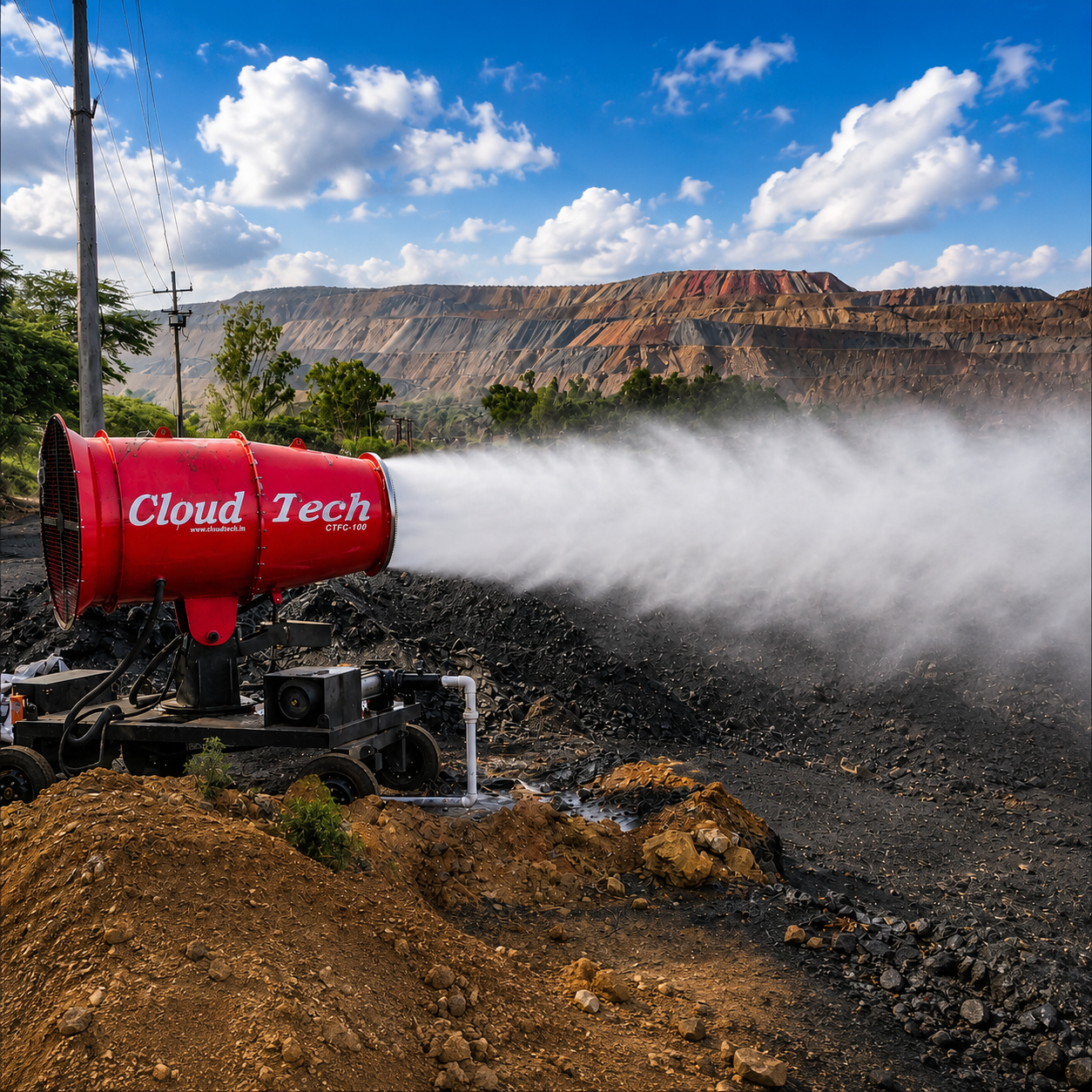

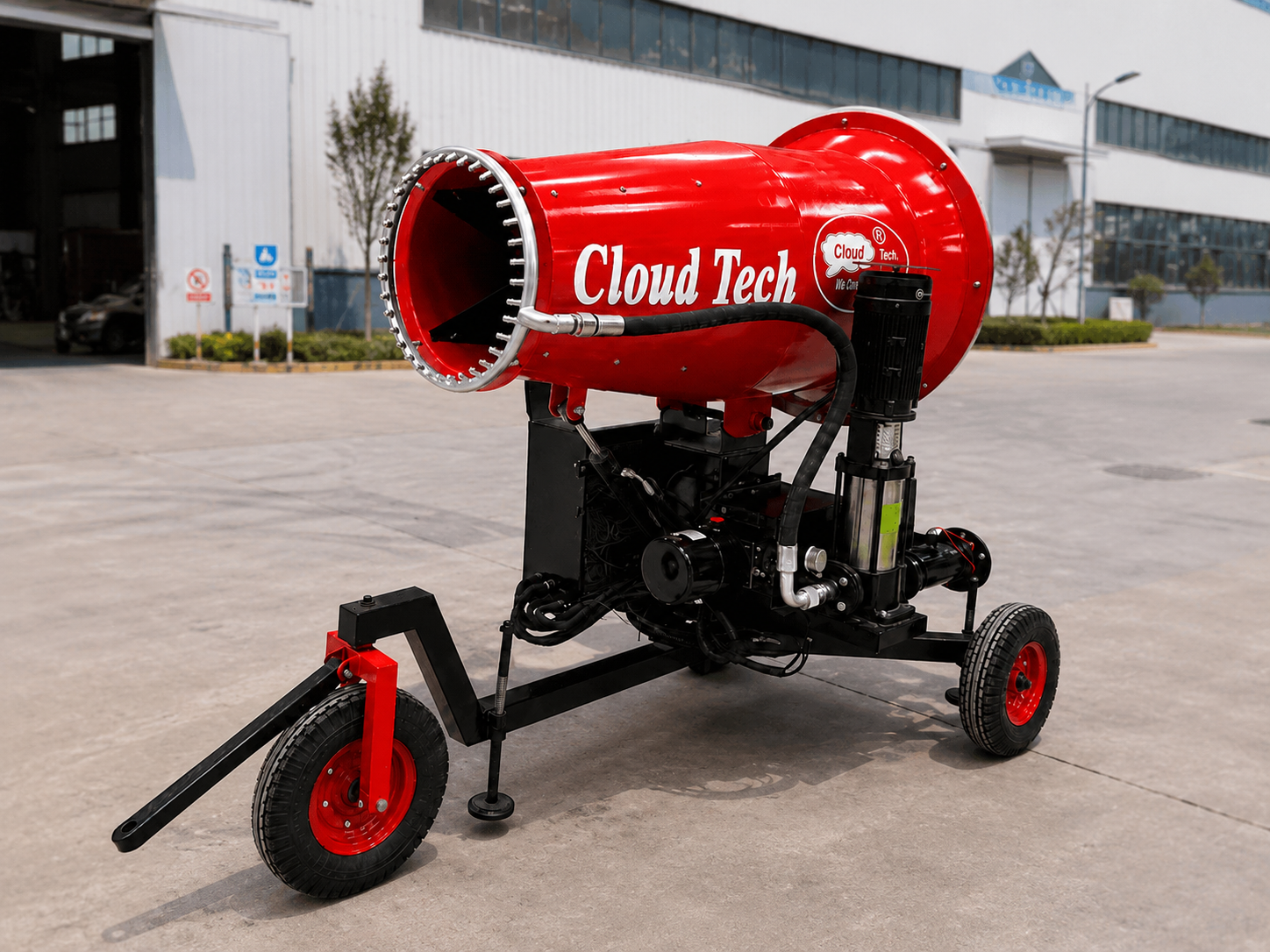

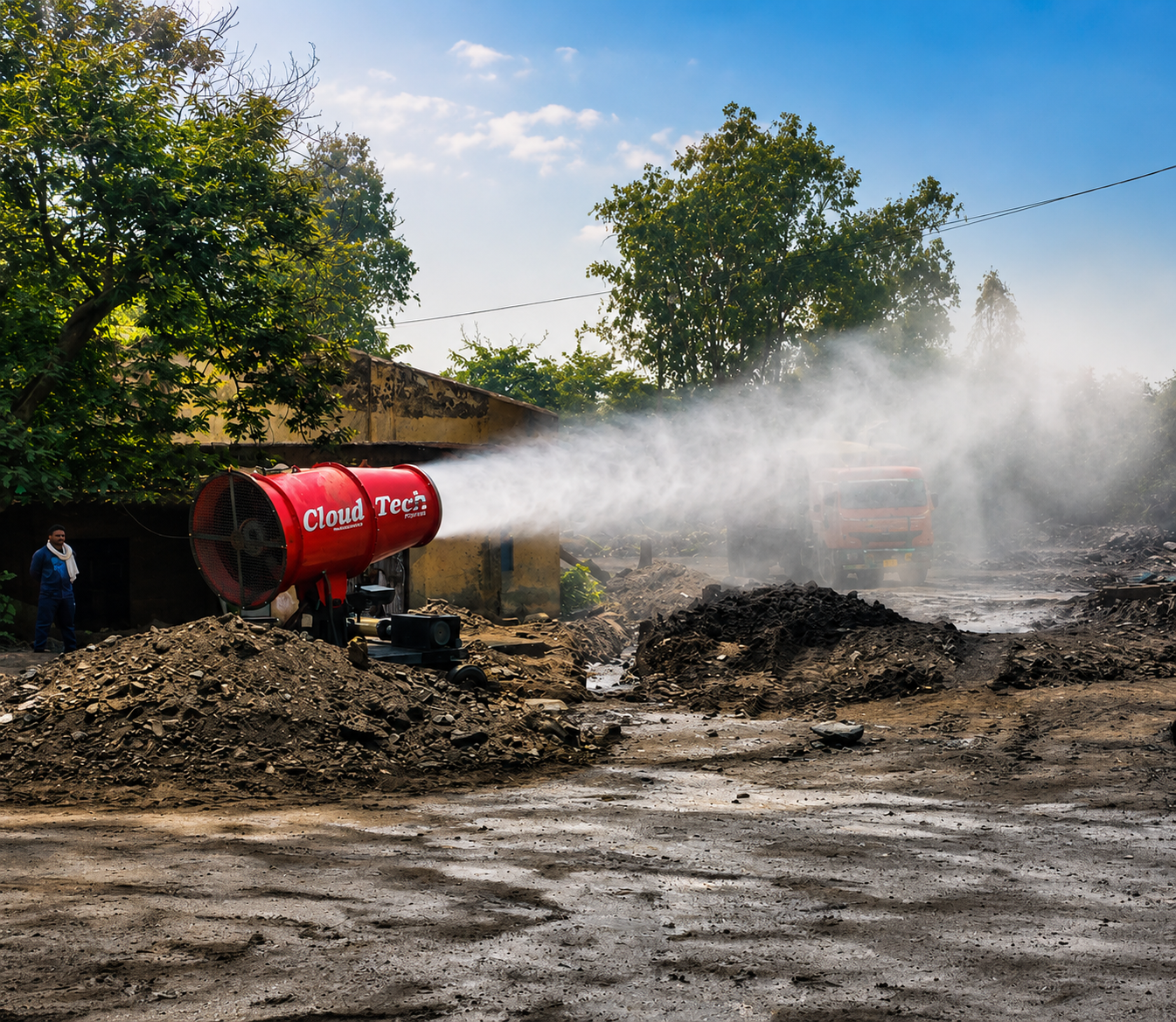

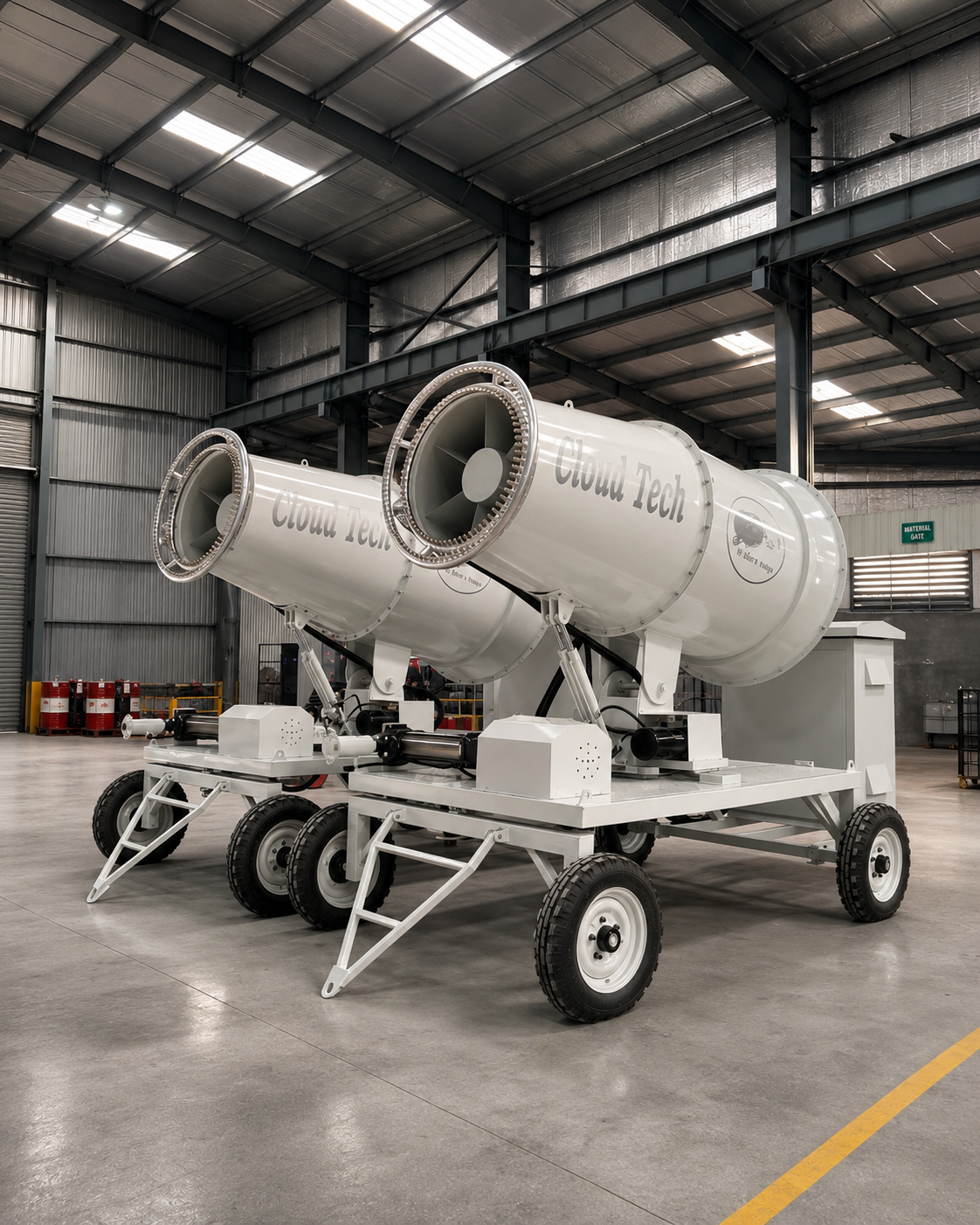

Real-world deployment of Cloud Tech Private Limited’s Anti Smog Gun across different locations. Witness how our technology fights air pollution effectively.
| Model | Power (KW) | Min. Flow (m³/hr) | Throw (meters) | Oscillation (degrees) | Throw Angle | Mounting Options |
|---|---|---|---|---|---|---|
| CTFC30 | 9 | 1.5-2.4 | 30 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
| CTFC50 | 13 | 3.0-6.0 | 50 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
| CTFC70 | 30 | 4.8-7 | 70 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |

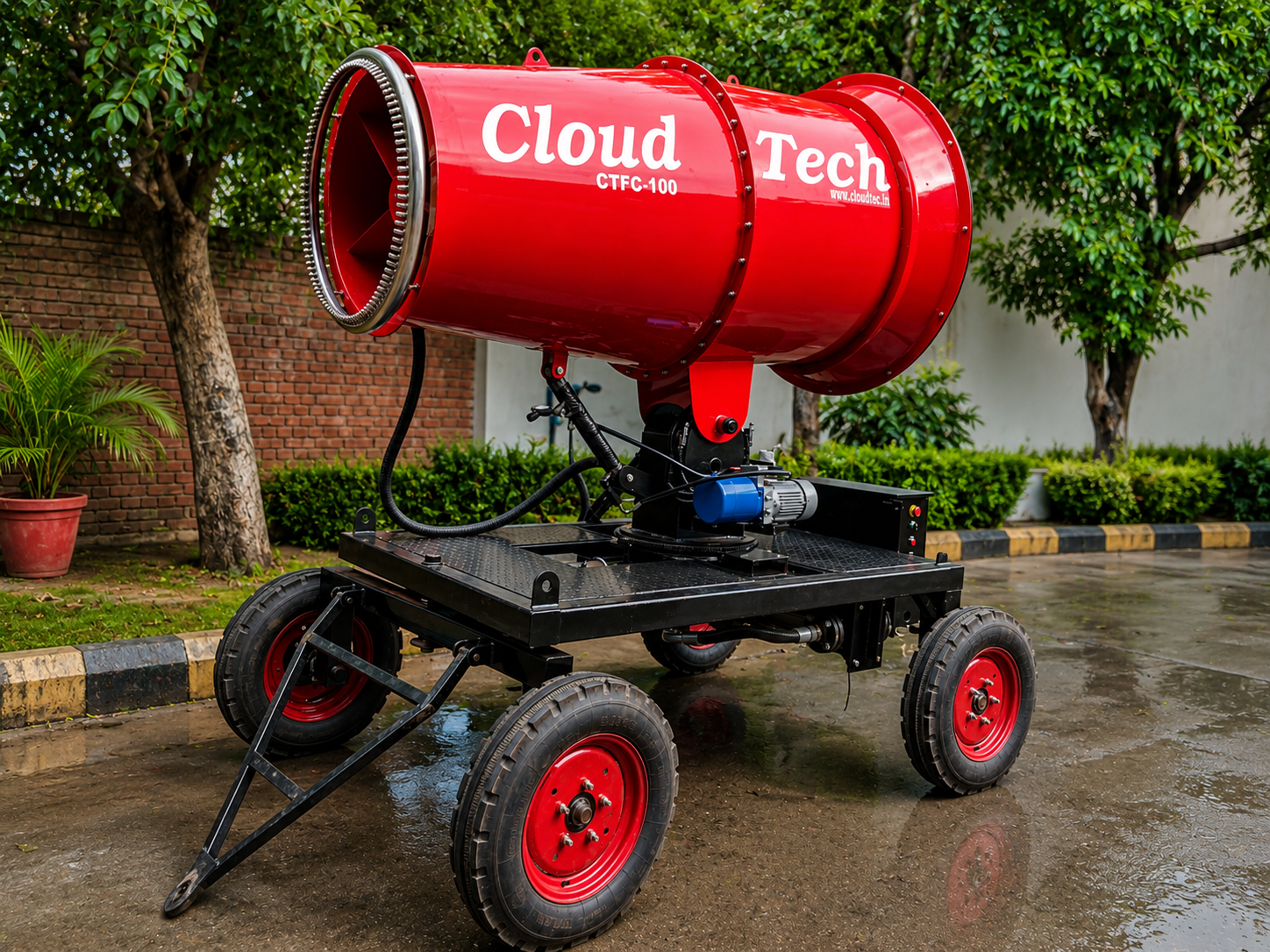

| CTFC100 | 50 | 7.2-9 | 100 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
| CTFC120 | 58 | 8.0-10 | 120 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
| CTFC150 | 90 | 10-15 | 150 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
| CTFC250 | 150 | 15-24 | 250 | 0-360° | -5° to +45° | Skid/Trolley/Trailer/Truck |
With full control over machine with wireless remote control with automatic oscillation and throw angle setting.
Control through local control panel and automatic oscillation/manual throw angle setting.
Control through local control panel and manual oscillation/throw angle setting.
Control through PLC and synchronization with client Logic Control.
Application Areas
Key Benefits
How It Works
Our Anti Smog Guns excel in these specialized applications:
Controls dust and pollutants generated during construction activities where PM10 levels often exceed safe limits.

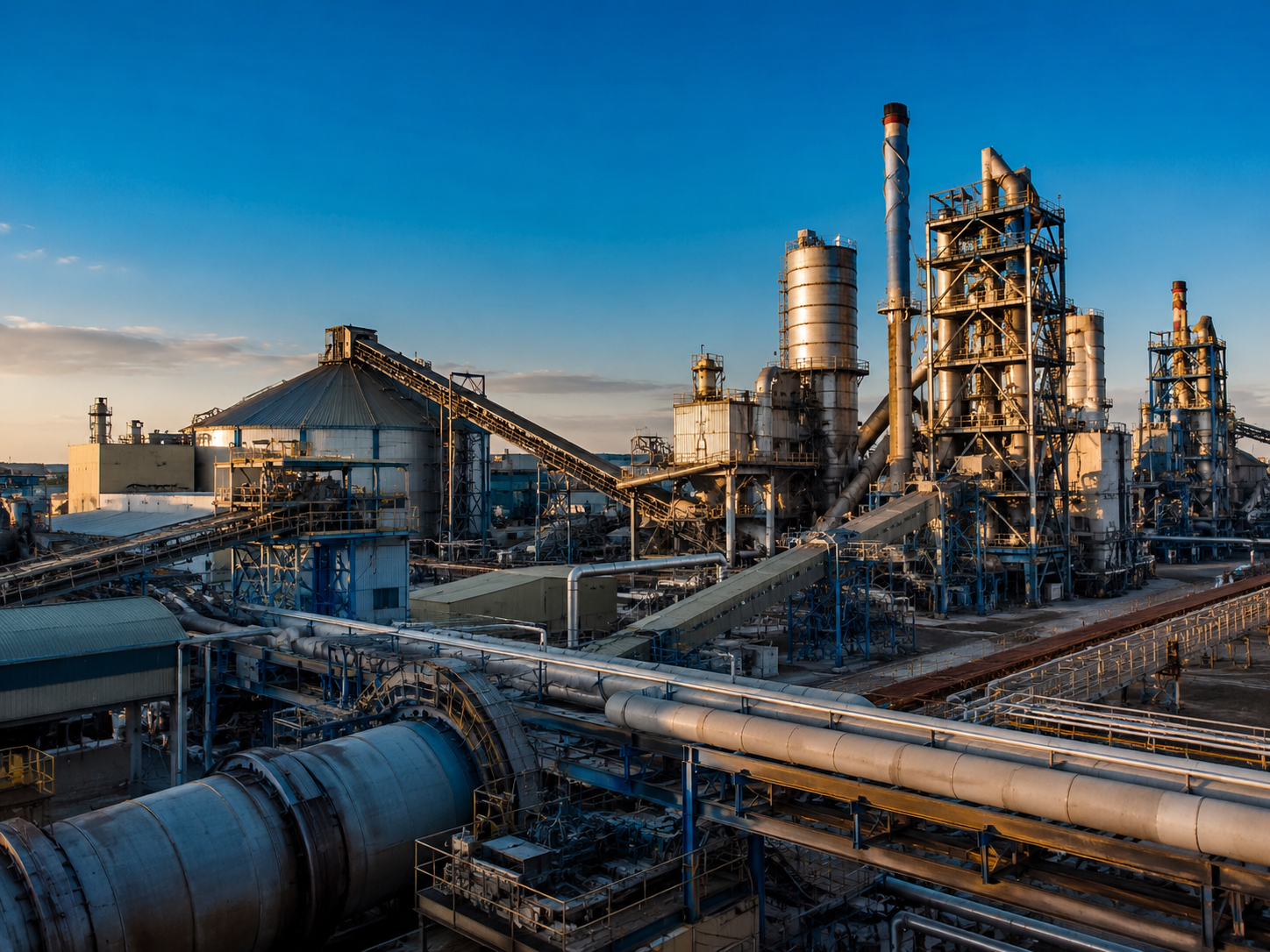

Mitigates air pollution from factories and power plants that emit particulate matter through fossil fuel combustion.
Reduces smog in city centers where vehicle emissions contribute to dangerous levels of ground-level ozone and fine particles.
Improves air quality in areas with high human traffic where pollution concentration poses health risks to the public.
Controls particulate emissions from waste processing operations and landfills that contribute to local air pollution.

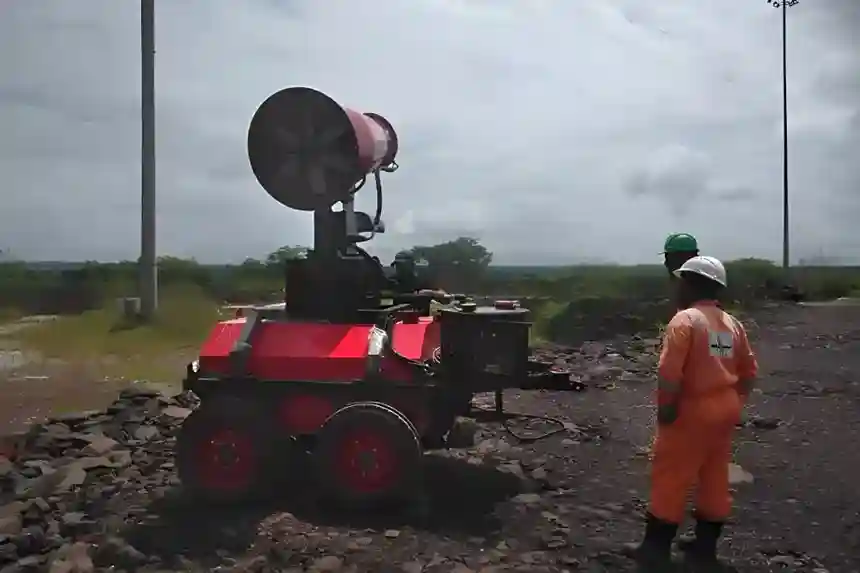

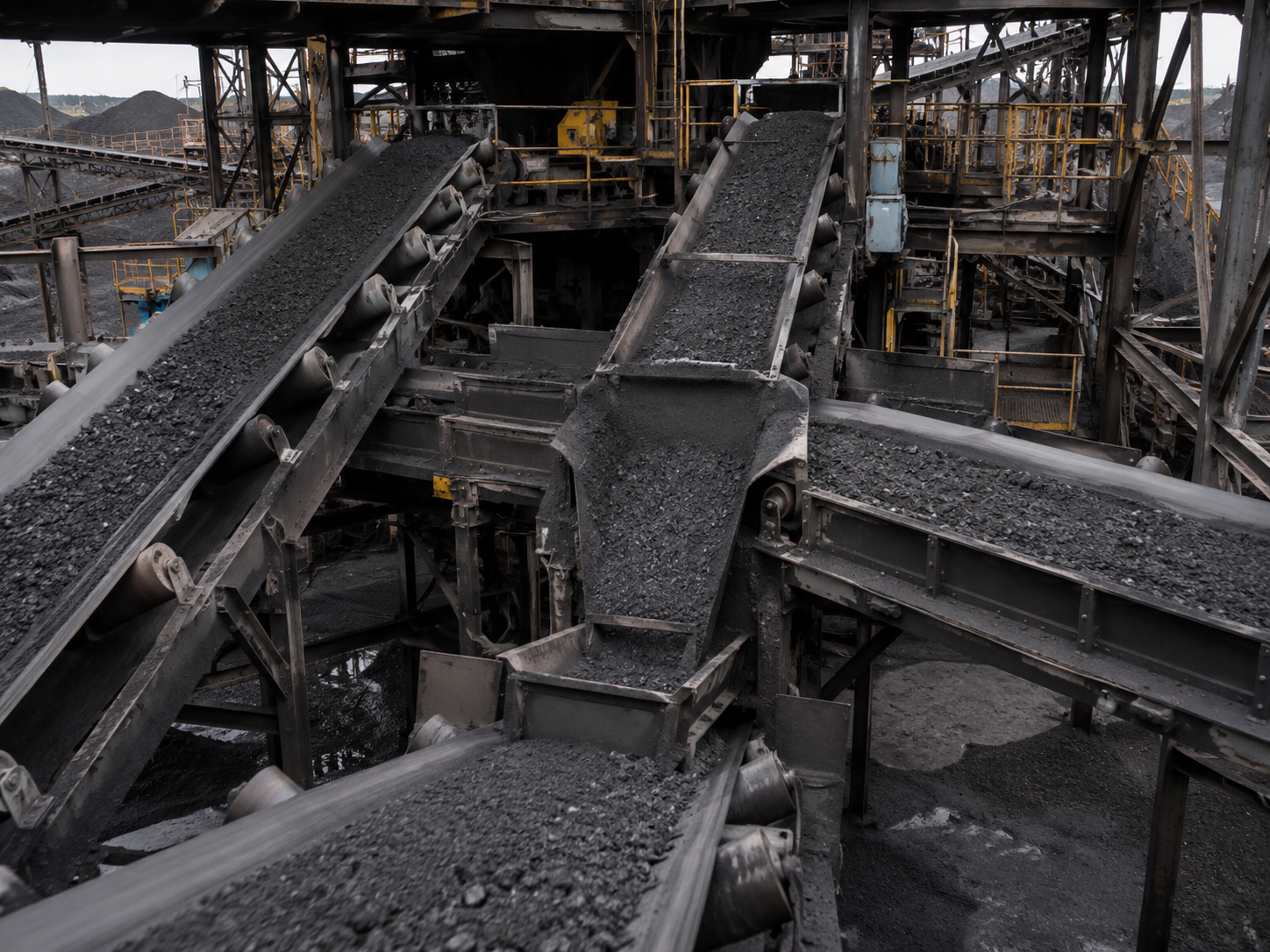

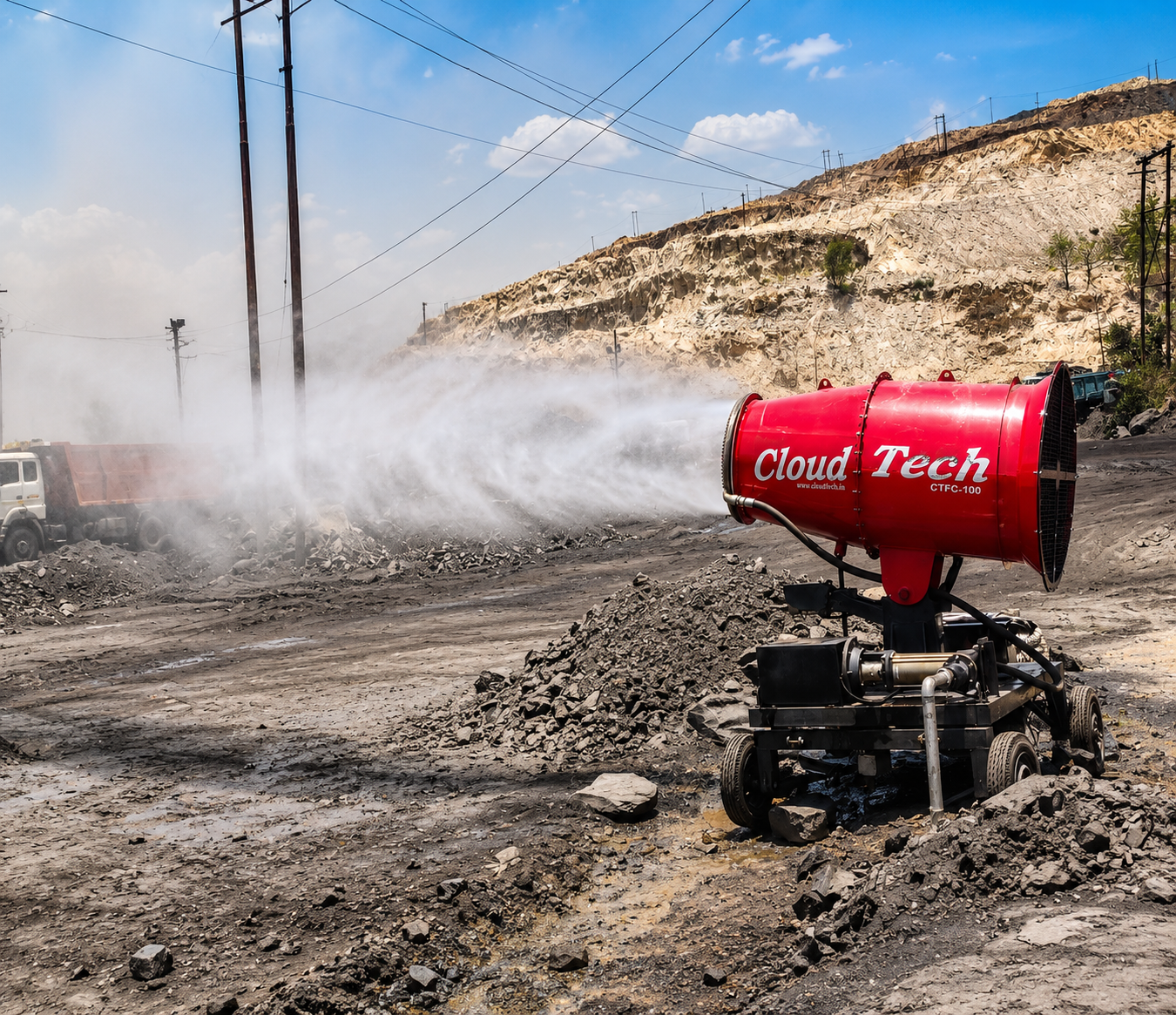

Manages dust from extraction and material handling processes where airborne particles create hazardous working conditions.
Reduces air pollution by up to 95% immediately, effectively mitigating both PM10 and PM2.5 particulate matter.
The first and only Anti Smog Gun tested and approved by the Central Pollution Control Board (CPCB) in 2017.
Available in fully automatic, semi-automatic, manual, and PLC-controlled variants to suit different operational requirements.

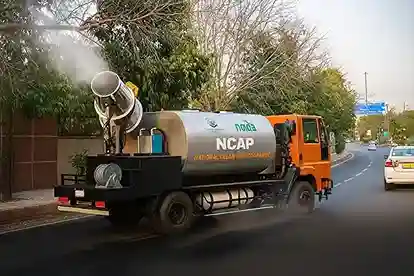

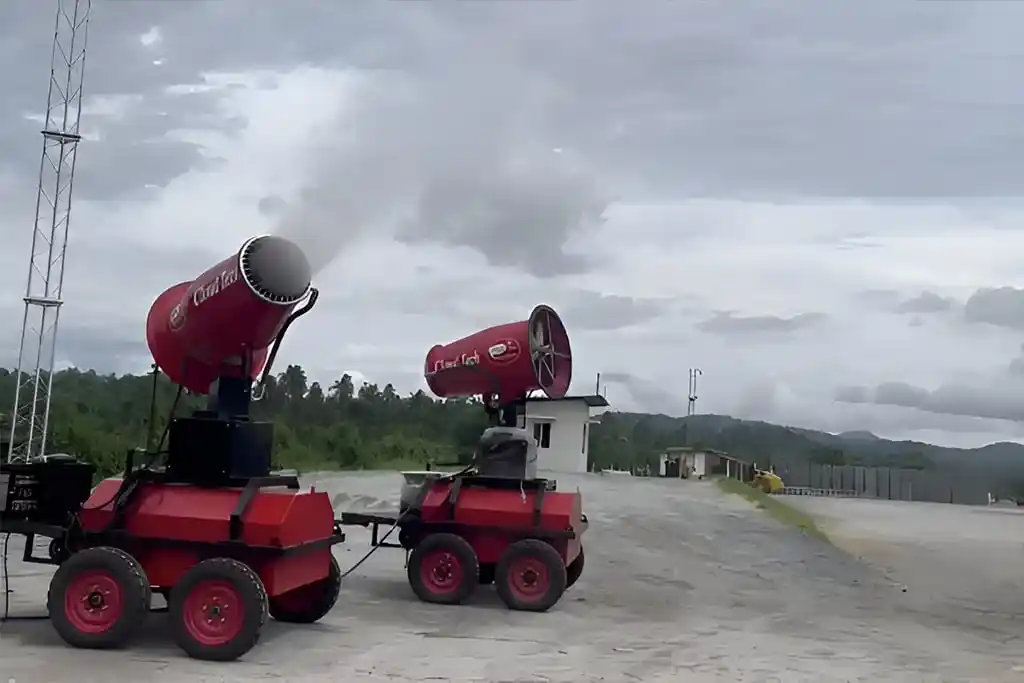

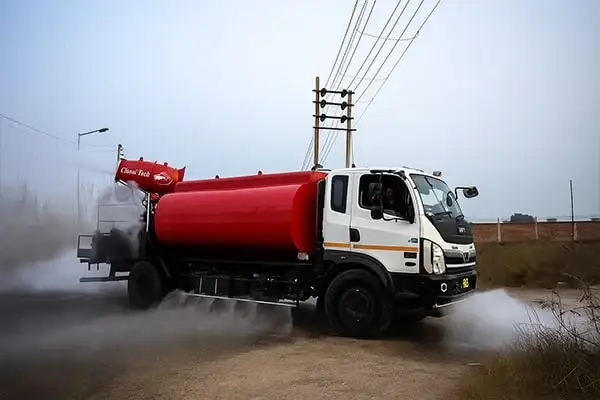

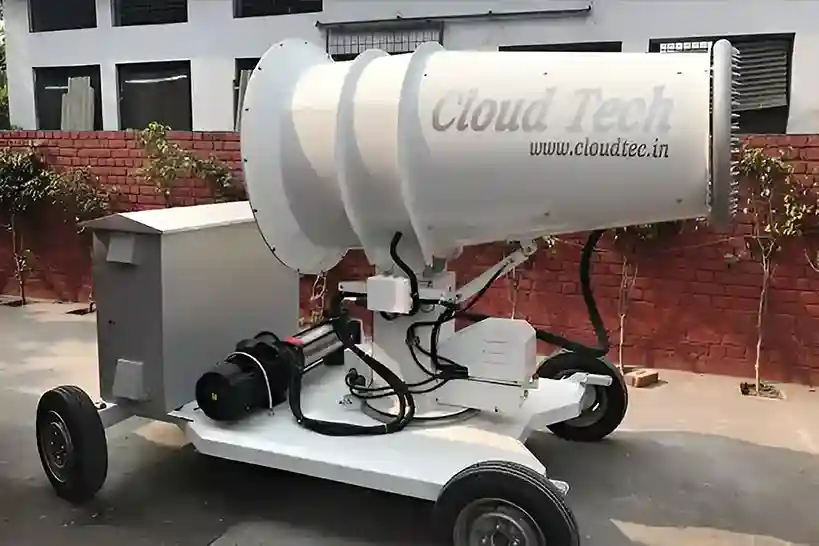

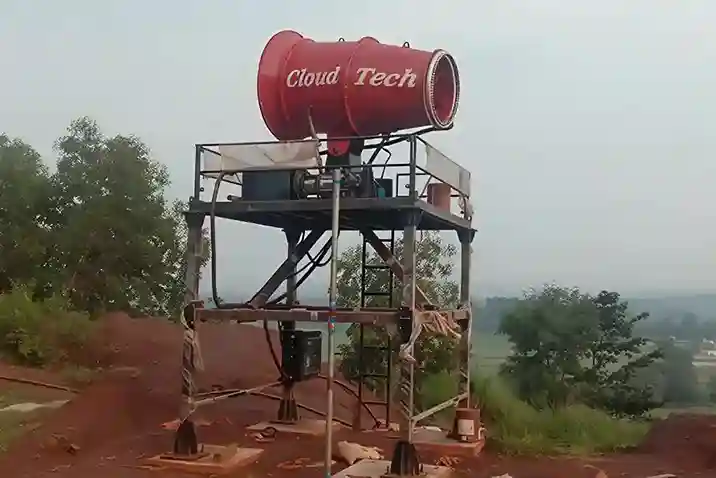

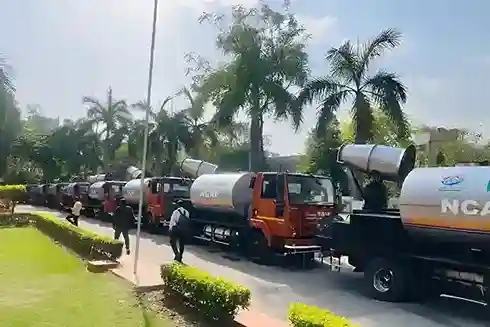

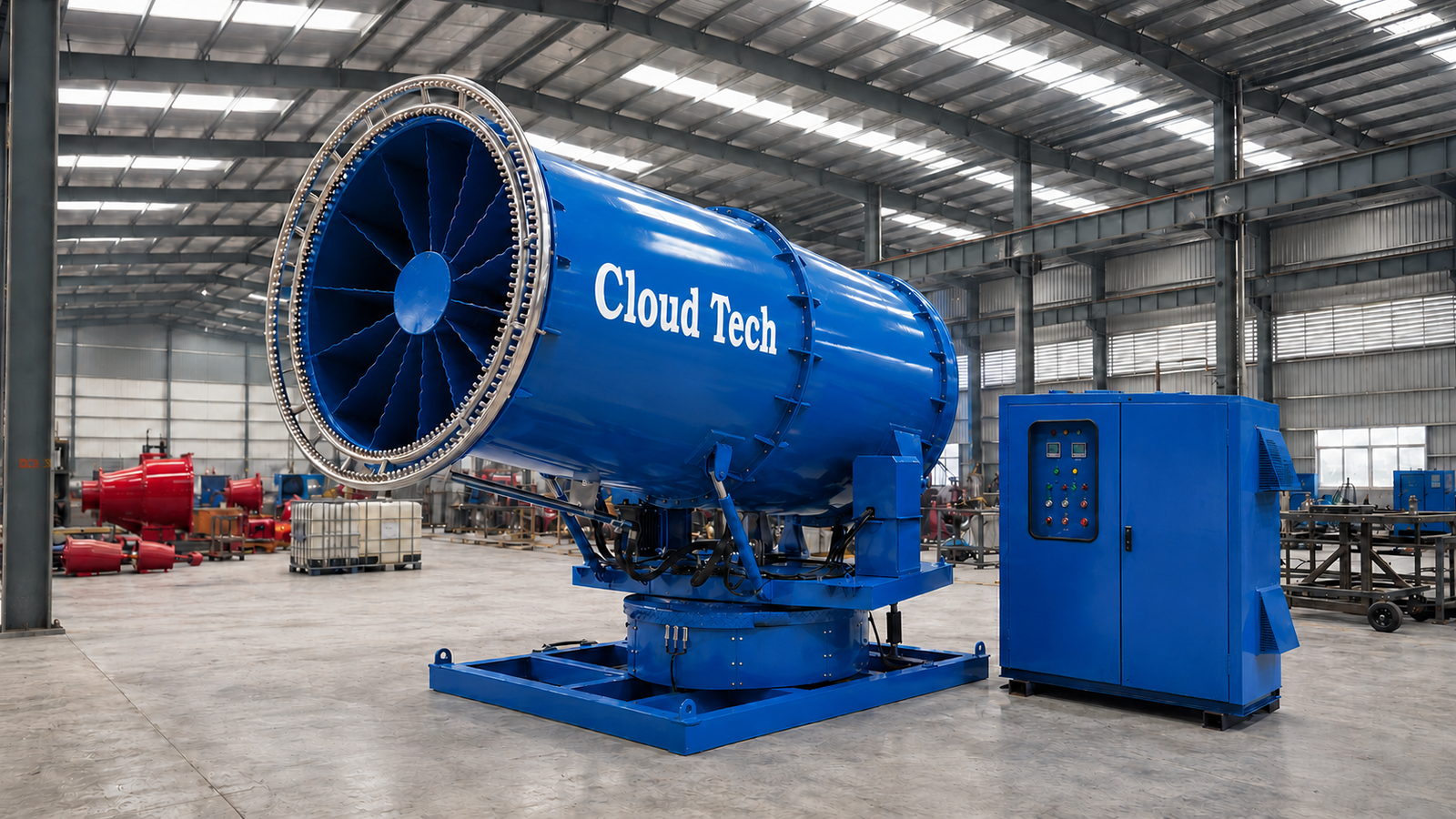

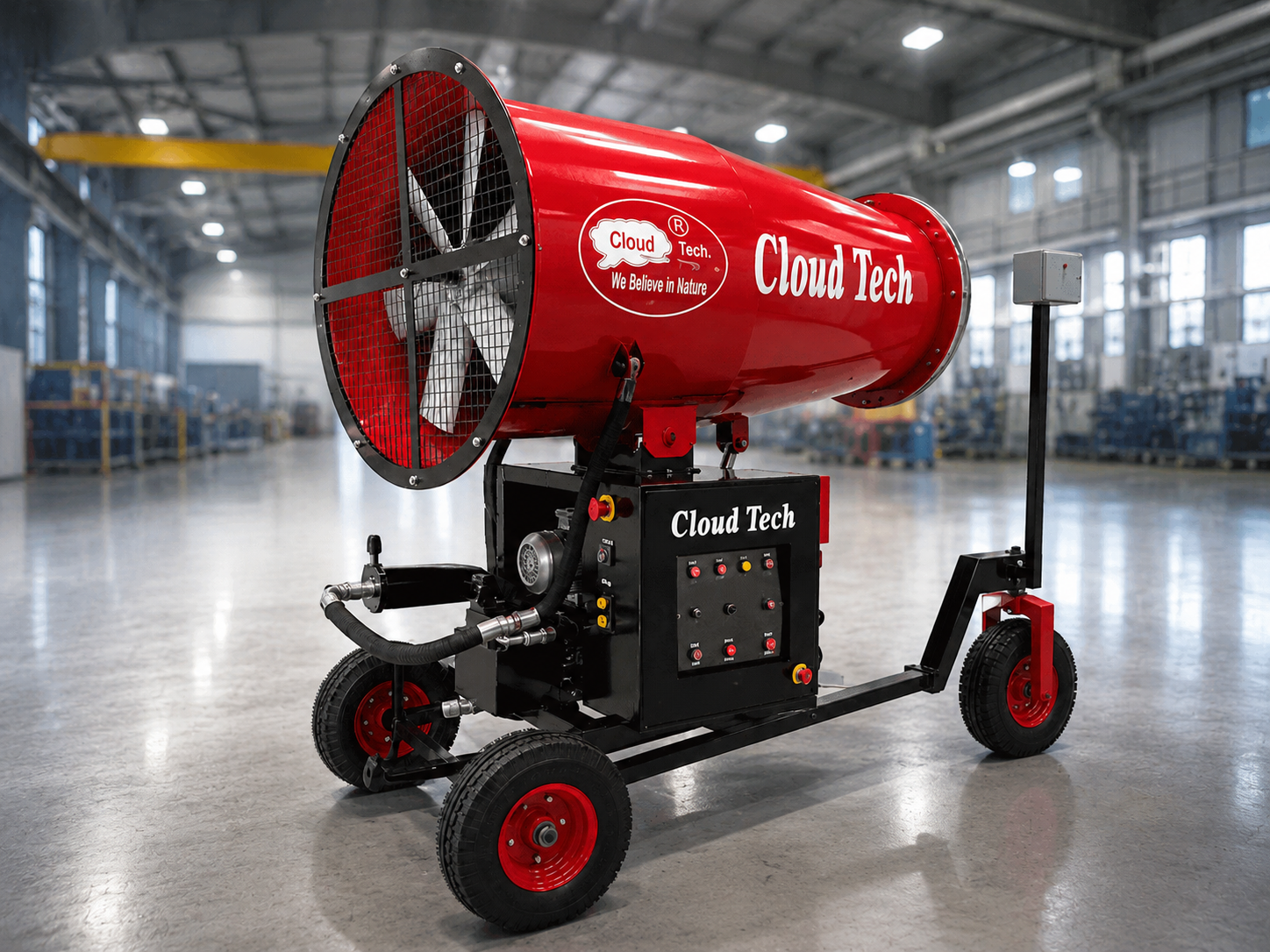

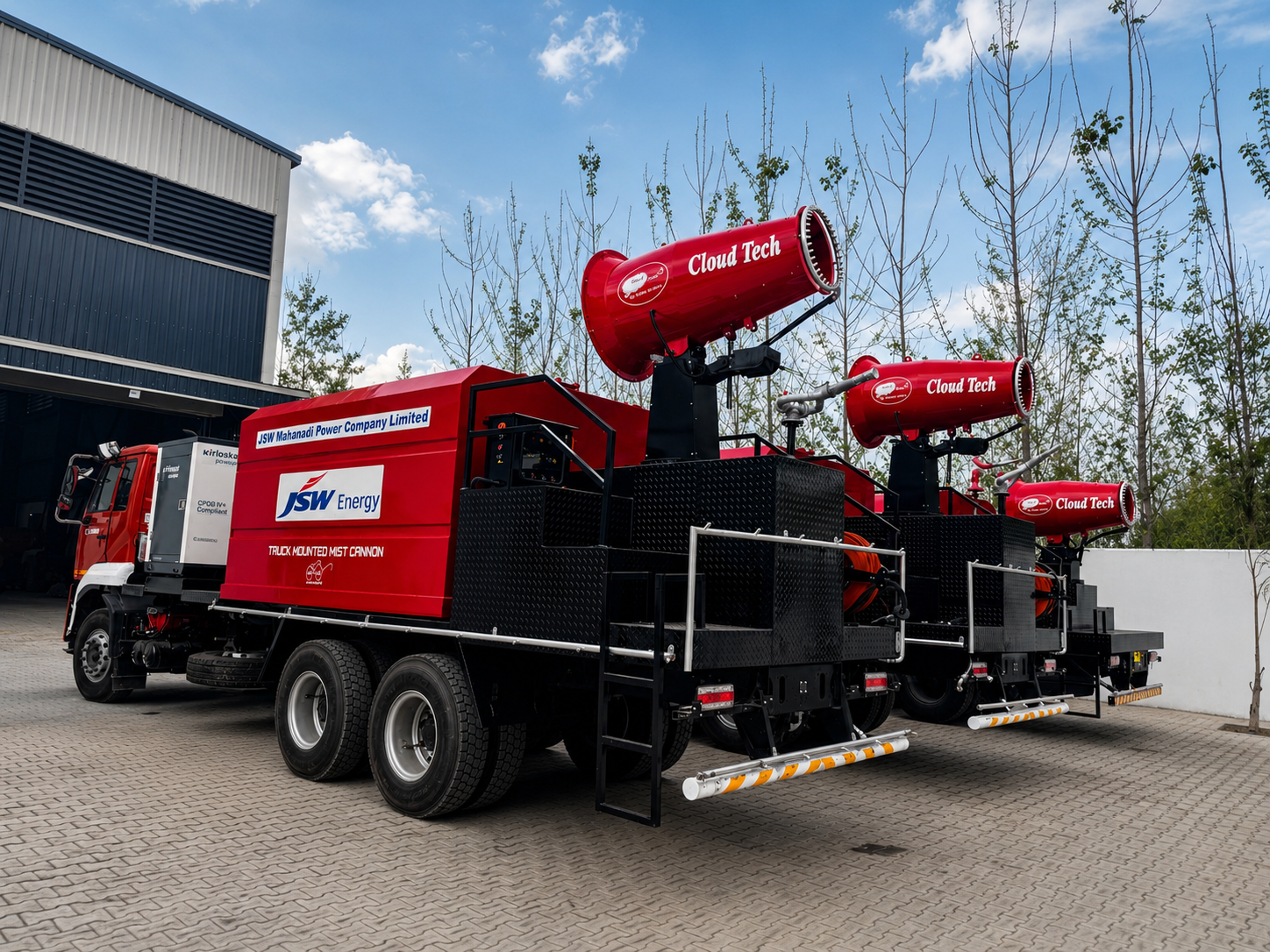

Versatile deployment through skid, trolley, trailer, or truck mounting configurations for application in various environments.

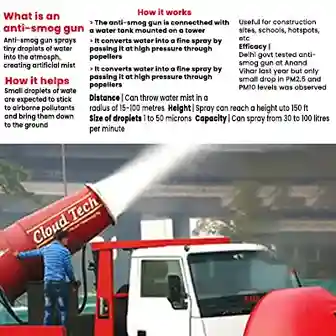

The system creates a fog of water droplets smaller than 10 microns in size through specialized nozzles and high-pressure water delivery.
A high-speed fan propels the fine water mist across distances ranging from 30 to 250 meters (model dependent), covering large areas effectively.
The tiny water droplets absorb airborne pollutants, including PM10 and PM2.5 particulate matter, causing them to fall to the ground without creating wetness.
360° oscillation capability combined with adjustable throw angles (-5° to +45°) ensures complete coverage of targeted areas for maximum pollution control.
Creates water droplets smaller than 10 microns that effectively capture even the smallest dust particles from the air.
Complete rotation capability with adjustable throw angle from -5° to +45° for comprehensive environmental protection.
Reduces air pollution by up to 95% immediately upon operation, providing instant improvement in air quality.
Clear and structured comparison of Basic and Fully Automatic Anti-Smog Guns, highlighting differences in operation, technology, efficiency, and application areas.
| Features | Manual | Semi Automatic | Fully Automatic |
|---|---|---|---|
| Operation | Local Control Panel | Local Control Panel | Local Control Panel |
| Monitoring | Manual / Visual | Manual / Visual | Real Time PM / Sensors (Optional) |
| Horizontal Movement | Manual | Automatic through Local Control Panel | Automatic through Local Control Panel / Wireless Remote Control |
| Vertical Movement | Manual | Manual | Automatic through Local Control Panel / Wireless Remote Control |
| Control System | Basic / Electrical | Basic / Electrical | PLC / IOT / Cloud-dashboard (Optional) |
| Wireless Operation | No | No | Yes - through wireless remote control |
An anti-smog gun is a pollution control device designed to spray a fine mist of water droplets into the air. These micro-droplets bind with dust particles, PM2.5, PM10, and other suspended pollutants, forcing them to settle on the ground. At Cloudtec.in, our anti-smog guns are built with advanced nozzle technology to ensure maximum dust suppression in high-pollution areas.
Anti-smog guns are effective against particulate matter such as PM2.5 and PM10, along with dust, smoke, and ash. While they don’t neutralize harmful gases, they significantly cut down visible smog. Cloudtec.in offers models designed to perform efficiently in construction, mining, and urban environments where dust levels are highest.
The spray range depends on the model. Standard machines cover 30–50 meters, while high-capacity versions can reach up to 100 meters. Cloudtec.in provides a range of anti-smog guns with adjustable spray distances, suitable for everything from small sites to large industrial zones.
On average, an anti-smog gun uses 30–100 liters of water per minute, depending on the pump pressure and spraying range. With Cloudtec.in solutions, you can choose water-efficient models that optimize consumption while still maintaining powerful dust control.

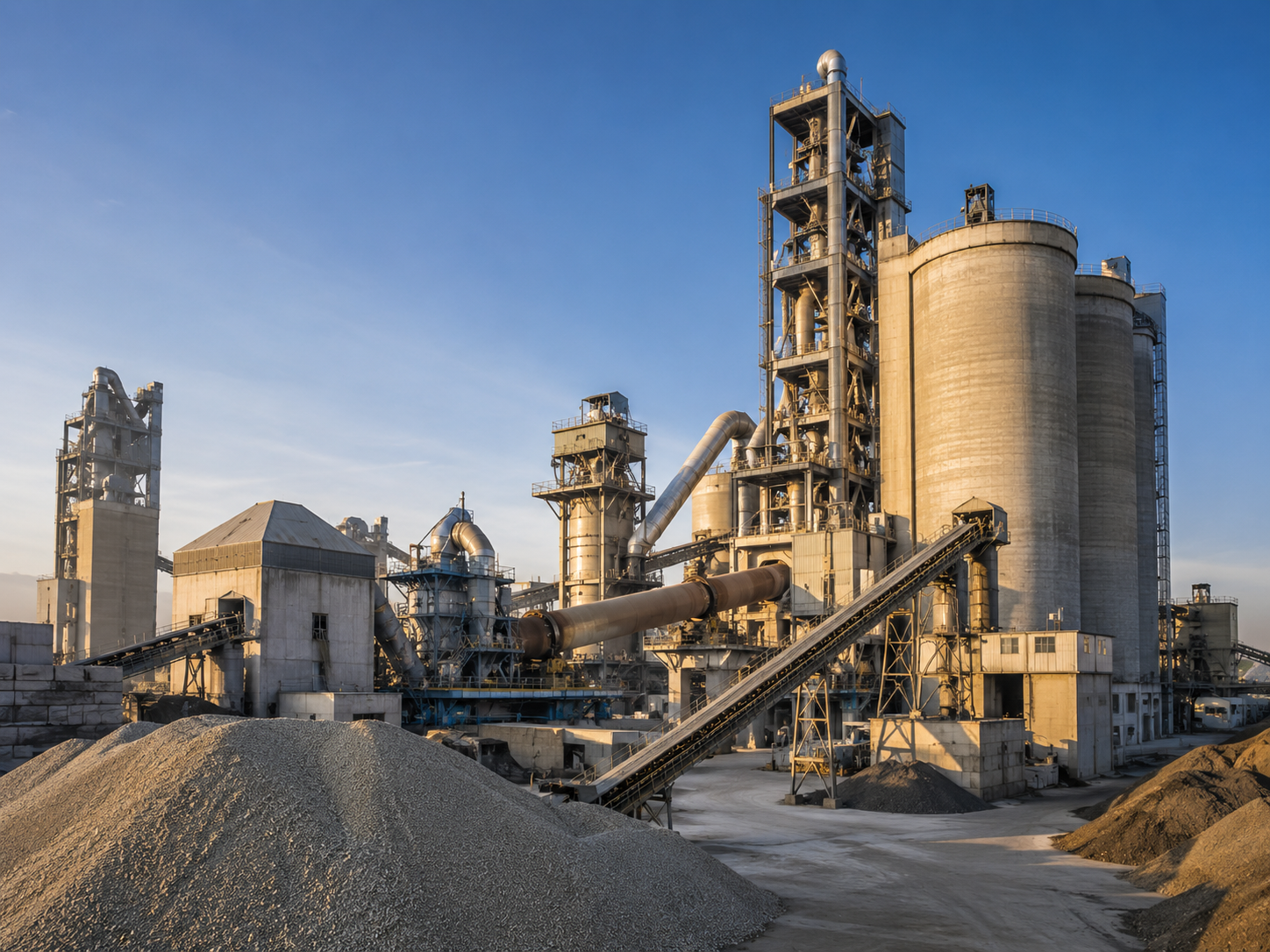

They are used at construction sites, highways, power plants, cement factories, and municipal areas with high pollution levels. Many clients rely on Cloudtec.in anti-smog guns for dust control in both industrial and urban projects, ensuring compliance with local environmental standards.
Yes, anti-smog guns have been proven to reduce dust and particulate levels effectively. While not a complete fix for all pollution, they provide fast and visible results. Cloudtec.in has supplied anti-smog guns to industries and government projects where noticeable improvements in air quality were achieved within minutes of operation.
Routine maintenance includes cleaning nozzles, checking filters, and ensuring pumps function properly. Cloudtec.in offers durable anti-smog guns designed for long-term use, with easy-to-service parts and after-sales support for hassle-free maintenance.
Yes, government agencies like CPCB and NGT mandate anti-smog guns at construction and infrastructure sites in highly polluted areas. Cloudtec.in provides CPCB-compliant anti-smog guns that help businesses meet regulations while contributing to cleaner air.
Advantages:
Costs vary depending on coverage, pump size, and mobility features. At Cloudtec.in, we offer anti-smog guns in multiple configurations, ensuring you find a model that balances budget, efficiency, and compliance needs.

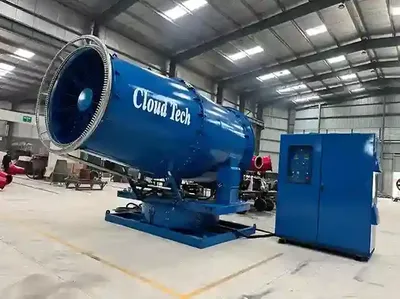

Cloud Tech Pvt. Ltd. is among the leading Anti-Smog Gun manufacturers in India, known for producing world-class pollution control equipment, including the world’s biggest Anti-Smog Gun for large-scale applications.
Yes. Most Anti-Smog Guns are designed to operate with treated recycled water, making them cost-effective and eco-friendly without wasting freshwater.
Contact our team today to discover how Cloud Tech Private Limited's CPCB-approved Anti Smog Gun
systems can help you improve air quality and protect health in your operations.
