Cold Fog Dust Suppression
Our Cold Fog Dust Suppression System (CFDSS) uses high-pressure water fogging to create ultra-fine water droplets less than 10 microns in size. These tiny droplets effectively absorb even the smallest dust particles in the air while falling to the ground without causing wetness.
The system delivers a fine, dense fog through strategically placed atomizers at key dust-generating points. Operating at 1500 PSI, our technology requires no costly air compressors, making it more economical than conventional dust control methods while effectively controlling PM-10 particulates.
Each Cloud Tech Dust Suppression System is custom designed for maximum effectiveness at your specific site. The specialized atomization nozzles create 10-micron fog droplets that capture airborne dust particles, creating a safer and more comfortable work environment while meeting environmental compliance standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Droplet Size | Less than 10 microns (Dry Fog) |
| Operating Pressure | 1500 PSI |
| Dust Reduction Efficiency | Reduces PM-10 levels by 50% or more |
| Air Compressor Requirement | None |
| Energy Consumption | 5% of conventional dust suppression systems |
| Installation Cost | Approximately 60% of bag filter type systems |
Application Areas
Key Benefits
How It Works
Our Cold Fog Dust Suppression Systems are ideal for:
Conveyors
Controls dust at material transfer points on conveyor systems where significant dust is generated during material movement.
Wagon Tipplers
Suppresses dust during coal unloading operations at wagon tipplers where substantial dust is released.
Crushers & Screens
Effectively manages dust at crushing and screening operations where material processing creates significant airborne particles.
Manufacturing Sheds
Creates improved air quality in indoor production areas and sheds where dust accumulation affects worker safety and equipment operation.
Hoppers & Silos
Controls dust at material loading and unloading points for hoppers and ash silos where fine particles become airborne.
Power & Cement Plants
Provides effective dust management in power generation facilities and cement production where dust control is critical for operations.
Low Cost Operations
Low initial investment (60% of conventional systems) with minimal operating costs due to low water and electricity consumption.
Minimal Maintenance
No moving parts in the fogger ensures years of reliable operation with minimal maintenance requirements.
Enhanced Safety
Safer than bag houses with no fire hazard and effective even in high humidity conditions, while cooling workers in hot environments.
No Material Wetting
Traps dust particles without over-wetting material, preserving material quality and preventing handling issues.

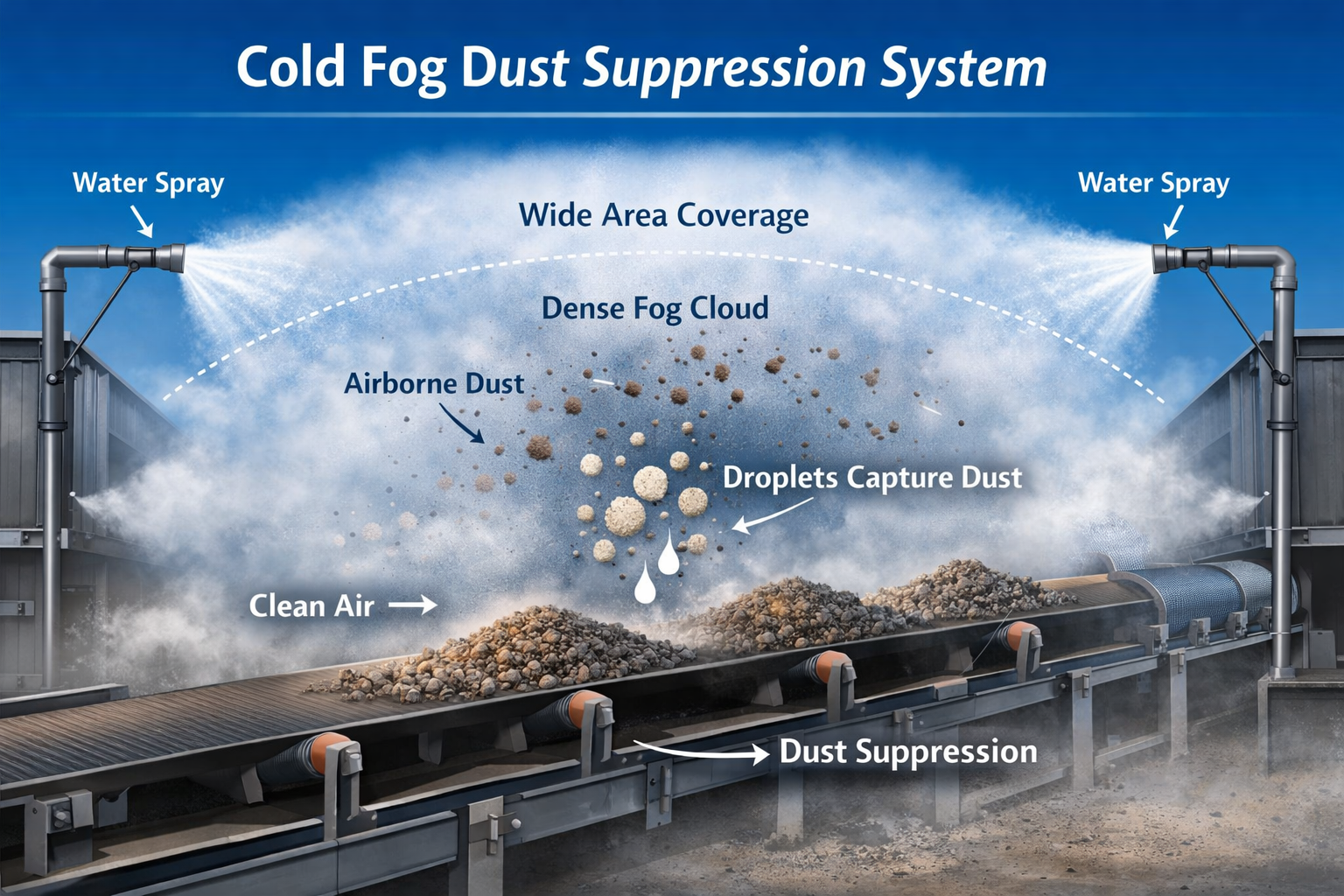

High-Pressure Atomization
System operates at 1500 PSI to create ultra-fine water droplets (less than 10 microns) without requiring air compressors.
Strategic Placement
Atomizers are positioned at key dust-generating points to deliver fine, dense fog precisely where needed for maximum effectiveness.
Particle Capture
Tiny water droplets absorb even the smallest dust particles in the air through surface tension and collision principles.
Dust Settlement
Captured dust particles fall to the ground without creating wetness, maintaining dry conditions in the work environment.
Ultra-Fine Fog Technology
Creates water droplets smaller than 10 microns that effectively capture dust particles without wetting materials.
Cost-Effective Solution
Operates with 60% lower installation cost than bag filter systems and just 5% of the energy consumption.
Environmental Compliance
Reduces PM-10 levels in open plant areas by 50% or more, helping meet environmental and worker safety standards.
